EN 13411 Type B Wire Rope Grips Clips

EN 13411 Type B Wire Rope Grips Clips

Name: EN 13411 Type B Wire Rope Grips Clips

Standard: EN 13411 part 5 Type B

Finish: hot dipped galvanized; marked with manufacturers make on the bridge and U bolt

Material: bridge- steel U bolt- mild steel

Feature: grooved bridge; marked with size on bridge

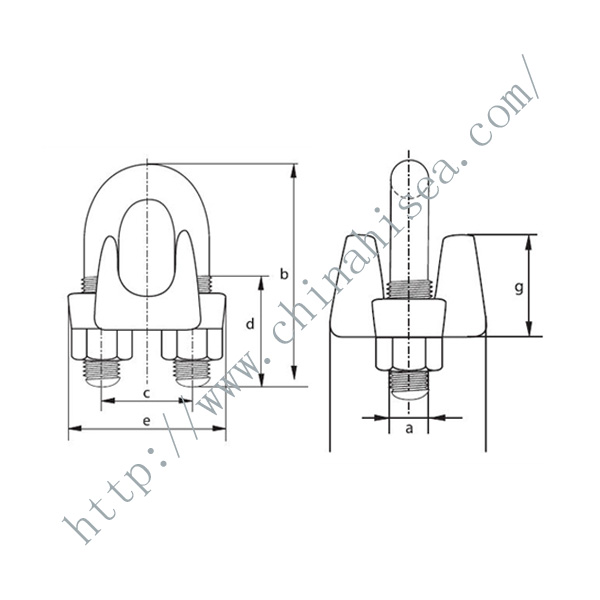

Technical Specification of EN 13411 Type B Wire Rope Grips Clips


Model No.

Rope Dia.

Main Dimension (mm)

Weight of kg/100

mm

A

B

C

D

E

F

G

E13411B-4

4

5

24

12

11

24

21

10

2

E13411B-5

5

6

31

15

13

29

24

13

4

E13411B-7

7

8

34

19

13

37

30

18

8

E13411B-8

8

10

45

22

19

43

33

19

14

E13411B-10

10

11

49

26

19

49

42

25

19

E13411B-11

11

12

60

30

25

58

46

26

31

E13411B-13

13

13

61

30

25

58

48

31

34

E13411B-15

15

14

72

33

32

63

52

31

36

E13411B-16

16

14

74

33

32

64

54

36

45

E13411B-20

20

16

86

38

37

72

57

38

68

E13411B-22

22

19

98

45

41

80

62

40

108

E13411B-26

26

19

108

48

46

88

67

47

113

E13411B-30

30

19

117

51

51

91

73

48

140

E13411B-34

34

22

130

59

54

105

79

56

207

E13411B-36

36

22

140

60

59

108

79

58

234

E13411B-40

40

22

147

66

60

112

85

64

266

E13411B-42

42

25

161

70

67

121

92

67

329

E13411B-46

46

29

174

78

70

134

97

76

441

E13411B-52

52

32

195

86

78

150

113

85

603

E13411B-58

58

32

213

98

81

162

116

100

707

E13411B-65

65

32

227

105

87

168

119

113

806

E13411B-72

72

32

243

112

91

174

127

124

1000

E13411B-78

78

38

271

121

98

194

135

136

1440
