Forged Steel Vertical Type Lift Check Valve

Forged Steel Vertical Type Lift Check Valve

Forged Steel Vertical Type Lift Check Valve:

1. Brief Introduction:

(1). Media: Water, Oil etc

(2). Temperature: ≤120℃

(3). Nominal Pressure PN: 16 Mpa, 32 Mpa

(4). Nominal Diameter DN: 40-200

2. HSH42H/Y Forged Steel Vertical Type Lift Check Valve Specification and External Size (mm):

Nominal Pressure PN	DN	D0	D	DI	Md	Z-D	H	b	Weight (㎏)
16.0 MPa	15	15	95	60	M24×2	3-18	240	20	5.5
16.0 MPa	25	23	105	68	M33×2	3-18	262	20	7.5
16.0 MPa	32	29	115	80	M42×2	4-18	285	22	10
16.0 MPa	40	39	165	115	M52×2	6-26	285	28	19.5
32.0 MPa	10	11	95	60	M24×2	3-18	234	20	5.5
32.0 MPa	15	17	105	68	M33×2	3-18	240	20	6
32.0 MPa	25	23	115	80	M42×2	4-18	262	22	8.5
32.0 MPa	32	29	135	95	M48×2	4-22	285	25	12
32.0 MPa	40	42	165	115	M64×2	6-26	316	32	21

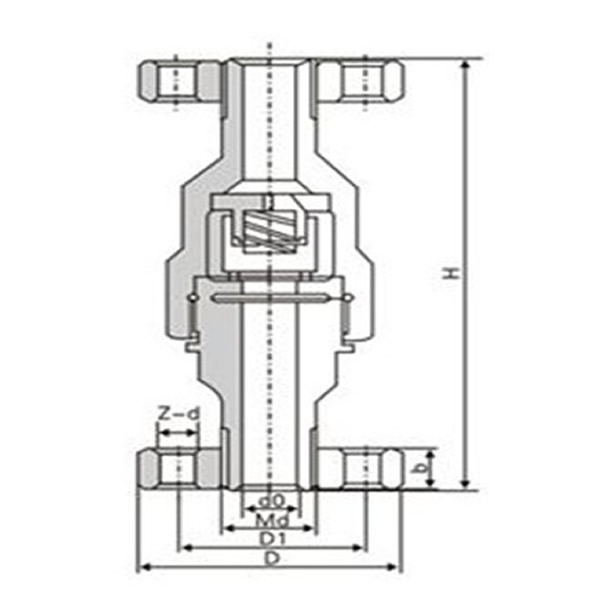

3. HSH42H/Y Forged Steel Vertical Type Lift Check Valve Stereogram Picture:

Forged Steel Vertical Type Lift Check Valve Stereogram

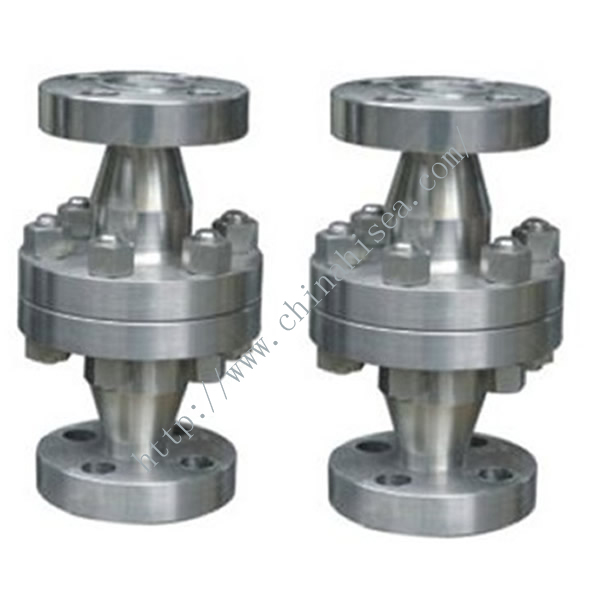

4. HSH42H/Y Forged Steel Vertical Type Lift Check Valve Sample Picture:

Forged Steel Vertical Type Lift Check Valve Sample

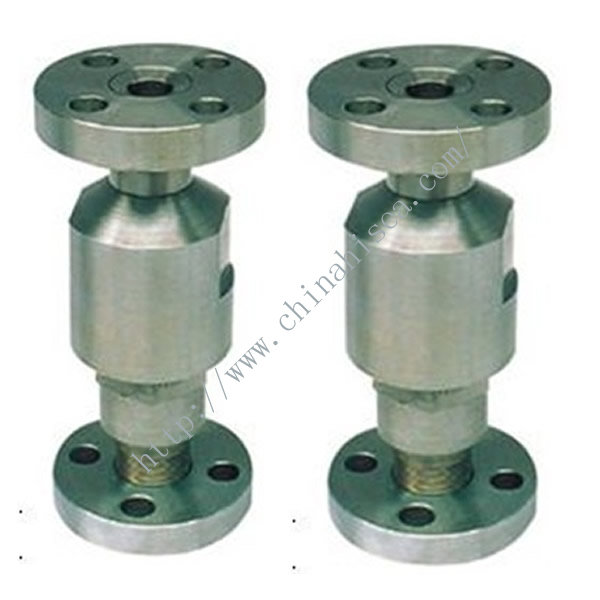

5. HSH42H/Y Forged Steel Vertical Type Lift Check Valve Warehouse Product Picture:

Forged Steel Vertical Type Lift Check Valve Warehouse Product
