Horizontal Fairlead With 5 Rollers:

Fairlead is a device to change the cable direction used for guiding ropes in ship mooring and will not breakdown.

Fairleads are provided horizontal, vertical, diagonal ribs to increase stiffness and fairleads strength. Fairlead compact structure, reasonable openings, except for ordinary vessels towing or mooring, but also for navigation in the canal waterway ship is towed or moored.

Roller fairlead There are three main rollers, four rollers, five rollers, six roller, roller seven, eight rollers and so on.

Hi-sea Group supply all kinds of roller fairlead .Quality management and product strict according to IACS requirement.

5 roller.jpg

Wire Rope Diameter(mm) Nylon Rope Diameter(mm) E(mm) F(mm) D(mm) d(mm) L(mm) L1(mm) L2(mm) L3(mm) B(mm) B1(mm) B2(mm) H(mm) H1(mm) Weight(kg)
19.5 36 200 150 100 40-0.5 644 416 300 544 324 194 108 508 250 182
22.5 40 200 150 120 50-0.5 728 456 320 608 384 232 128 552 270 282
26 45 200 180 130 55-0.5 776 480 330 646 415 250 138 606 310 360
32 70 220 180 150 65-0.5 880 540 370 730 475 288 158 670 330 532
34.5 80 220 200 160 70-0.5 940 580 400 780 507 308 168 710 360 675
37.5 85 240 200 180 80-0.5 1030 620 420 850 571 345 190 770 380 895
43 95 260 210 200 90-0.5 1136 686 460 936 632 385 210 820 410 1169
52 100 260 220 230 100-0.5 1256 746 490 1026 723 445 240 910 450 1636
60.5 - 300 240 260 120-0.5 1430 850 560 1170 815 500 270 1000 500 2384
68 - 320 320 320 150-0.5 1690 990 640 1370 997 620 330 1130 570 4021

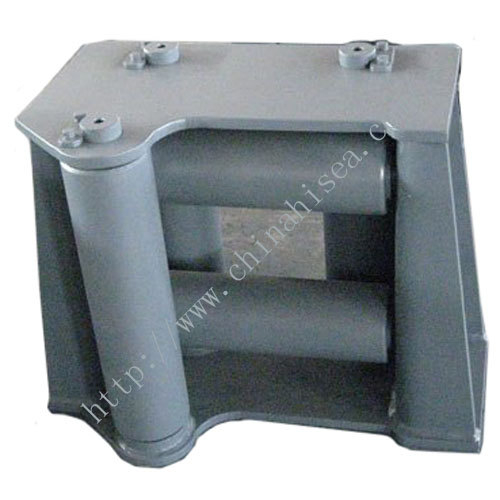

Photo:

5 Horizontal Rollers Fairleads.jpg
