IEEE 1580 Type P 1kV Flame retardant Control Cable

IEEE 1580 Type P 1kV Flame retardant Control Cable

IEEE 1580 Type P 1kV Flame retardant Control Cable

IEEE 1580 Type P 1kV Flame retardant Control Cable application

IEEE 1580 Type P 1kV Flame retardant Control Cable is suitable for use in commercial marine applications, MODU's & Platforms, onshore and offshore drilling platforms, FPSO, etc.

Control circuit up to 1kV, Control/Signal circuits for motor starter, electrical control system, interconnecting - Fixed installation power control & lighting in both explosion risk and safe areas, general purposes, emergency & critical systems - Designed and constructed for demanding environments and petroleum facilities located throughout the world

IEEE 1580 Type P 1kV Flame retardant Control Cable model

0.6/1kV C(OS)10PN, 0.6/1kV C(OS)10PNBS
0.6/1kV C(OS)12PN, 0.6/1kV C(OS)12PNBS
0.6/1kV C(OS)14PN, 0.6/1kV C(OS)14PNBS
0.6/1kV C(OS)16PN, 0.6/1kV C(OS)16PNBS
0.6/1kV C(OS)18PN, 0.6/1kV C(OS)18PNBS
0.6/1kV C(OS)20PN, 0.6/1kV C(OS)20PNBS

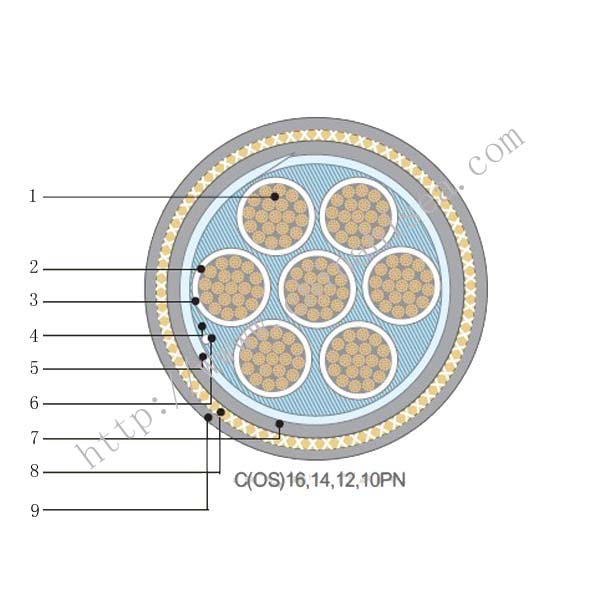

IEEE 1580 Type P 1kV Flame retardant Control Cable construction

1. CONDUCTOR : TINNED ANNEALED ROPE-LAY STRANDED COPPER
*For fire resisting cables, FS-type, mica tape shall be applied over the conductor as a fire proof layer
2. SEPARATOR TAPE (if necessary)
3. INSULATION(TYPE P ACCORDING TO IEEE 1580)
4. FILLER
5. SHIELDING: ALUMINUM POLYESTER TAPE
6. DRAIN WIRE
7. JACKET: ARCTIC NEOPRENE
8. ARMOR: BRONZE WIRE BRAID
9. JACKET: ARCTIC NEOPRENE

IEEE 1580 Type P 1kV Flame retardant Power Cable construction.jpg

IEEE 1580 Type P 1kV Flame retardant Control Cable standards

IEEE 1580(2001)
IEEE 45(2002)
UL 1309 / CSA C 22.2 No.245(1995)
100℃ (IEEE 1580 TYPE P)
110℃ UL1309/CSA C22.2 No. 245 Type X 110
FLEXEN 125 (UL 758 125)

IEEE 1580 Type P 1kV Flame retardant Control Cable features

Conductor flexibility: Flexible stranded
Outer sheath: Polychloroprene
Conductor shape: Circular stranded (RM)
Insulation: Cross-linked polyolefin
Conductor material: Copper or tinned copper

IEEE 1580 Type P 1kV Flame retardant Control Cable specification

Flame retardant IEC 60332-3-22 CAT.A / IEEE 1202
Cold resistant CSA C 22.2 No.38(cold bend @ -40℃ and cold impact @ -35℃ )
Drilling Mud Resistant (Water & oil based Mud) NEK 606(2004)
Crush & Impact resistant UL 1277 & UL 2225

IEEE 1580 Type P 1kV Flame retardant Control Cable shows

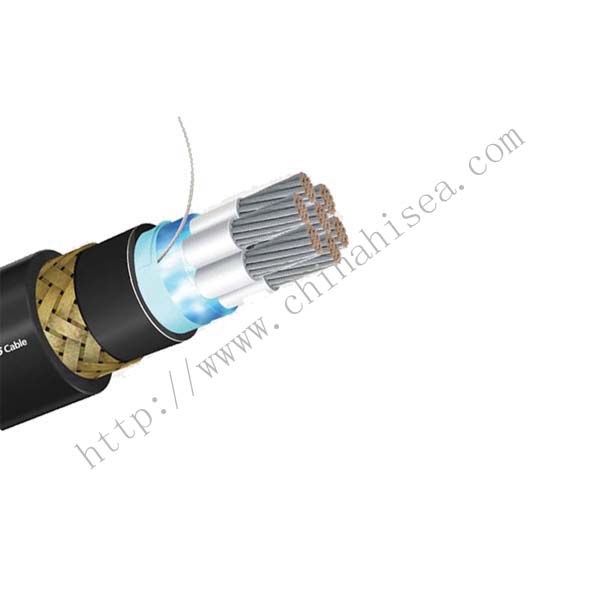

IEEE 1580 Type P 1kV Flame retardant Power Cable show.jpg

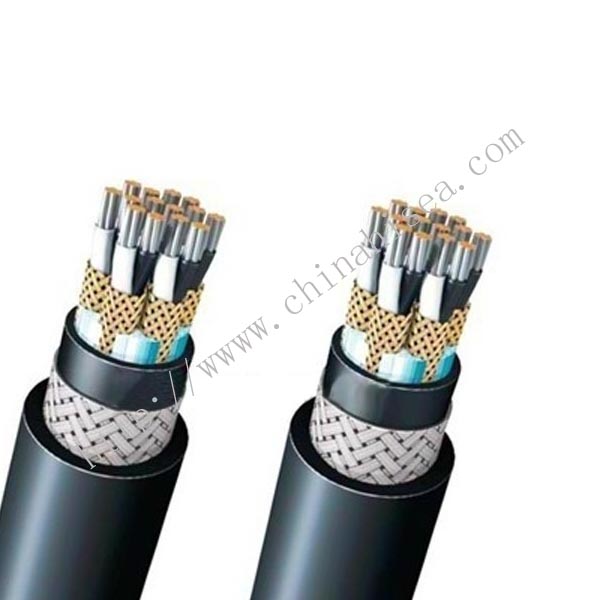

IEEE 1580 Type P 1kV Flame retardant Power Cable sample.jpg

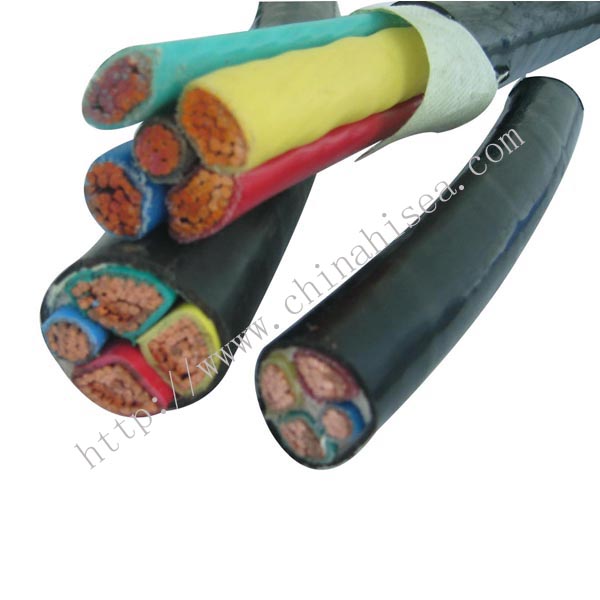

IEEE 1580 Type P 1kV Flame retardant Power Cable sample2.jpg

IEEE 1580 Type P 1kV Flame retardant Control Cable sample

IEEE 1580 Type P 1kV Flame retardant Control Cable workshop

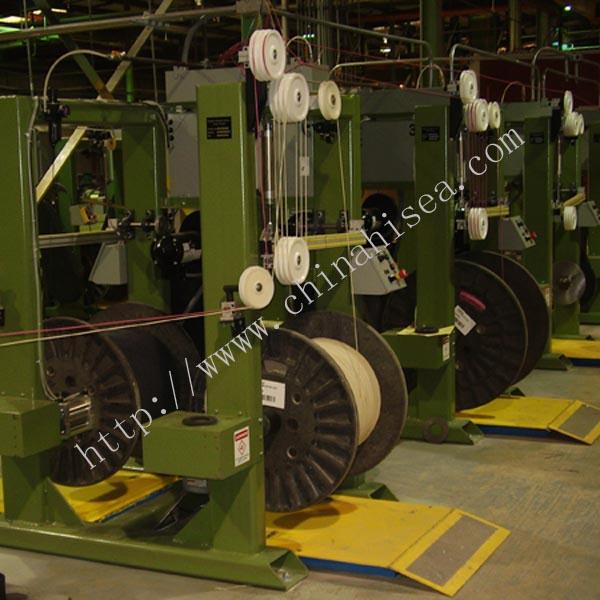

IEEE 1580 Type P 1kV Flame retardant Power Cable machinery.jpg

IEEE 1580 Type P 1kV Flame retardant Control Cable processing
