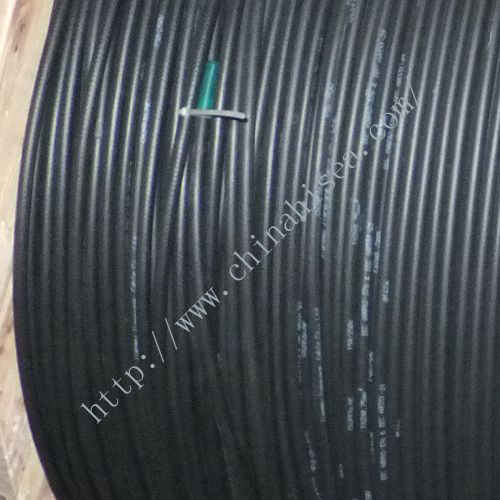

BFOU(c) S4 offshore communication cable

BFOU(c) S4 offshore communication cable application

This cable is mainly intended for communication,instrumentation and alarm system for offshore units,exclude for mud condition.

BFOU(c) S4 offshore communication cable Standards

IEC 60092-376
IEC 60092-351
IEC 60092-359
IEC 60331-21
IEC 60332-1
IEC 60332-3-2
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2004

BFOU(c) S4 offshore communication cable Construction

Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
Insulation:Mica tape + Halogen free EPR compound.
Twinning: Colour coded cores twisted together.

Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

Bedding:Halogen free compound.

Armour:Tinned copper wire braid.
Outer Sheath:Halogen free thermosetting compound, SHF2 (for TYPE S4). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S4/S8), coloured grey (blue for intrinsically safe).

BFOU(c) S4 Halogen free flame retardant mud resistant offshore power cable Main Parameter

Maximum conductor temperature:+90℃

Rated Voltage:250v

Tested Voltage:1.5kv/5min

Flame spread test on bunched cable:Category A

Smoke density of finished cable:≥60%

Bending radius : 8 × OD ( installing ); 6 × OD ( fixed installation )

BFOU(c) S4 offshore communication cable electrical characteristics

Nominal Cross-section	mm²	0.75	1.0	1.5	2.5
Nominal Conductor Diameter	mm	1.1	1.3	1.6	2.0
Max.Resistance@20℃	Ω/km	26.3	19.3	12.9	8.02
Mutal Capacitance	nF/km	75	80	85	95
Nominal inductance @1KHz	MH/km	0.727	0.686	0.667	0.623
Max. L/R@1KHz	µH/Ω	20	25	35	55
Working Voltage	V	250	250	250	250
