Cabin Unit with Heating
1.General
The cabin unit with heating is used for the marine or ocean platform. In winter, Because of the central air conditioning without air flow heating or there is a long way to deliver the warm air, high transform losses lead to the ideal temperature of the room can hardly be reached. So we can install the reheater cabin unit to deal with that.
The cabin unit is ceiling type which contains a temperature measurement device. When the setting temperature of the room is reached, the device will be automatic turn off.
2.Consists of Three Parts
Static pressure box
Diffuser
Air volume adjustment
3.Safety devise
65°and 105° auto reset safety switch
Minimum flow alarm (automatic model) and inbox temperature measurement with overheat limit to cut-off reheater power.
4.TNHR cabin unit
①Samper drawing of TNHR cabin unit


②Dimensions table

model

A

D

Y

C

L

W

B

P

M

H

Air Flow m3/h

Power

TNHR

160

79

260×260

185

450

450

150

225

240

50~75

75~95

100~200

0~200

100~300W

TNHR A

98

0~250

100~500W

TNHR B

98

0~300

100~600W

TNHR C

123

0~400

100~800W

TNHR D

200

123

320×320

230

600

600

200

200

284

0~500

100~1200W

Please indicate the diffuse power coating color, inlet and outlet size when place order

Model: TNHR

For outlet:16:160mm, 20:200mm

For inlet: A 78mm, B 98mm, C: 123mm.

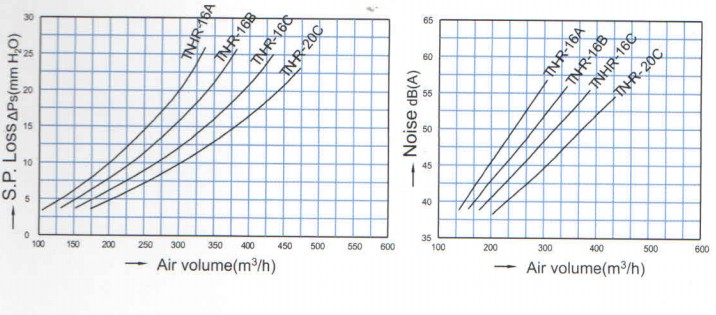

③Function curve of TNHR cabin unit


5.RBF cabin unit
①picture of RBF cabin unit


②appearance and circuit


③Dimensions table

Model

Voltage

V

Power

W

Apply area (m2)

Protection grade (optional)

Dimensions

L

W

H

Installation

RBF--05

220/380

500

2.5

IP44

IP56

400

400

130

Ceiling type

800

5

RBF--1

220/380

1000

7.5

IP44

IP56

500

400

175

Ceiling type

1200

10

RBF--2

220/440

1500

15

IP44

IP56

600

500

225

Ceiling type

More informations, please kindly to contact us!
