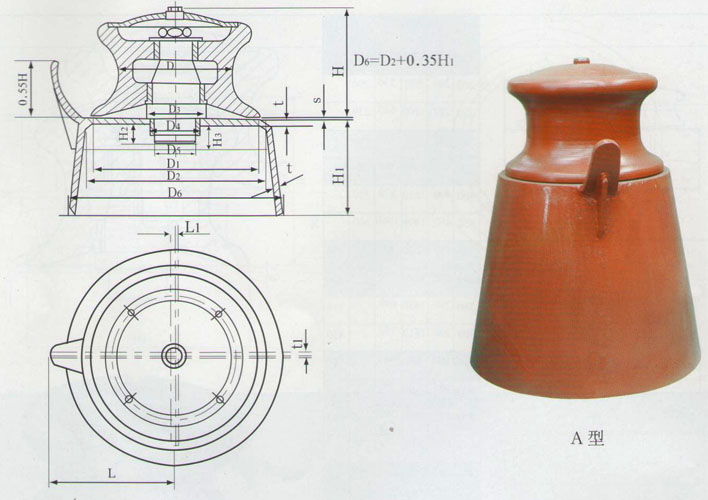

Cleat Fairlead A type CB*436 2000

Cleat Fairlead A type CB*436 2000

The pedestal roller is one of the small devices in the mooring arrangement on board, which is used as changing the direction of the mooring line. The position dimensioning of the pedestal roller is usually ignored in the ship outfitting design. And the accurate height and inclination of the pedestal roller is adjust by running a line on site base on the note on the drawing. The workers on site will try to determine the accurate position several times repeatedly ,which is not easy for them.

The formulas of the accurate position dimensioning of the pedestal roller are derived according to the space analyticall geometry methods in this paper. The accurate position dimensions can be calculated according to these formulas and be given on the design drawing. Which bring the design process to completion and is easy to the installation of the pedestal roller.

D	Rope					Size													Weight
	Wire			Rope	Fiber	Size
	6*36	6*30	6*37			D1	D2	D3	D4	D5	L	H	H1	H2	H3	S	T	T1
150	17	17.5	15	45	32	240	270	90	71	60	245	211		40	75	3	12	8	129
200	22.5	21.5	19.5	55	40	310	340	115	95	80	285	251		50	85	3	14	10	178
250	24	26	24	65	45	380	410	140	107	90	323	298		60	100	4	14	10	207
300	30	32.5	28	70	50	440	420	160	127	110	355	321		60	100	4	16	14	265
350	37.5	39	34.5	75	55	500	530	180	144	125	390	346		65	100	4	18	14	332
400	41	39	39	85	65	560	590	200	161	140	420	371		70	100	5	20	16	401
