HSK5 Marine Anchor:

We produce marine anchors since 1996, include stockless bower anchor, stock anchor, offshore anchors, etc. and our anchors have been approved by ABS, LR, BV, NK, DNV, GL, NK, KR, IRS, CCS Ceritificate. Good quality, Punctual shipment and Good service will make your business goes smoothly, we would be your reliable partner in China.

Anchor material: Q345B
Shackle material: ZG200-400
Spindle and pintle material 35#

Application:
The majority of the HSK5 marine anchor applications are found in permanent mooring systems such as FPSOs(Floating Production Storage and Offloading), FSUs, SPMs(Single Point Mooring) and in temporary mooring systems for moble drilling units(MODUs).

Mooring systems

Mooring systems have been around just as long as man has felt the need for anchoring a vessel at sea.These system were used,and are still used,on ships and consisted of one or more lines connnect to the bow or stern of the ship.Generally the ships strayed moored for a short duration of time(days).

When the exploration and production of oil and gas started offshore,a need for more permanent mooring systems because apparent.Numerous different mooring systems have been developed over the years,of which a short selection is presented here.

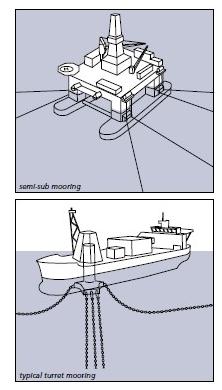

Semi-submerible drilling rig-generally thesemi-submersible are moored using an eight point mooring.Two mooring lines come together at each of the columns of the semi-submersible.

CALM buoy-generally the buoy will be moored using four or more mooring lines at equally spaced angles.The mooring lines generally have a catenary shape.The vessel connects to the buoy with a single line and is free to weathernane around the buoy.

Turret mooring-this type of mooring is generally used on FPSOs and FSQS in more hash environments.Multiple mooring lines are used,which come together around the turret to obtain an optimal orientation relative to the prevailing weather conditions.

Offshore anchor 1.jpg

Nominal Weight	Size(mm)								Shackle
(KG)	A	B	C	E	F	H	T	S	Model
1000	2580	2780	1582	1314	236	1074	430	62	a14
1500	2954	3187	1812	1505	271	1230	493	80	a17
3000	3721	4011	2283	1896	342	1550	622	90	a19
5000	4412	4756	2707	2248	406	1837	738	110	a23
7000	4910	5290	3011	2500	453	2045	825	117	a25
8000	5161	5563	3166	2629	474	2149	862	130	a27
10000	5559	5992	3410	2832	511	2315	929	140	a29
12000	5908	6368	3624	3010	543	2460	988	150	a31
14000	6219	6704	3815	3169	572	2590	1040	160	a33
15000	6364	6860	3904	3242	585	2650	1064	170	a34
18000	6763	7290	4149	3446	622	2816	1131	180	a35
20000	7004	7550	4297	3569	644	2917	1171	190	a37
22000	7230	7794	4436	3684	665	3011	1209	200	a39
25000	7545	8133	4629	3844	694	3142	1262	200	a39
30000	8018	8645	4919	4085	737	3339	1341	220	a42
