Travelling Block

Travelling Block

Travelling Block

Features of Travelling Block:

  • API Spec 8C standard
  • Authorized to use the official API monogram
  • Sheave groove subject to intermediate frequency quenching for better case hardness and longer wireline service life
  • All sheaves equipped with bi-pyramidal roller bearings with unique lubrication passages to each bearing
  • Equipped with heavy-duty wireline guard
  • Equipped with gin pole for block servicing;
  • Equipped with sand block and auxiliary block;
  • Compatibility between the sheaves and bearings of the travelling block and those of its mated traveling block

Specifications of Travelling Block:

Model

YC90

YC135

YC170

YC225

YC315

YC450

Max. hook load (KN)

900

1350

1700

2250

3150

4500

OD of sheaves (mm/in.)

762/30

915/36

1005/40

1120/44

1270/50

1524/60

Qty. of sheaves

4

4

5

5

6

6

Dia. of wireline (mm/in.)

26/1

26/1

29/1 1/8

32/1 1/4

35/1 3/8

38/1 1/2

Dimensions L × W × H (mm)

1500×806×533

1800×960×610

2100×960×630

2294×1190×630

2680×1350×974

3075×1600×800

Pictures of Travelling Block:
Travelling Block.jpg
Travelling Block
Travelling Block - Finished in Workshop.jpg
Travelling Block - Finished in Workshop
Travelling Block - Unfnished in Wirkshop.jpg
Travelling Block - Unfnished in Wirkshop
Travelling Block - Flaw Detecting.jpg
Travelling Block - Flaw Detecting
Travelling Block - On Site.jpg
Travelling Block - On Site
Travelling Block with Hook.jpg
Travelling Block with Hook

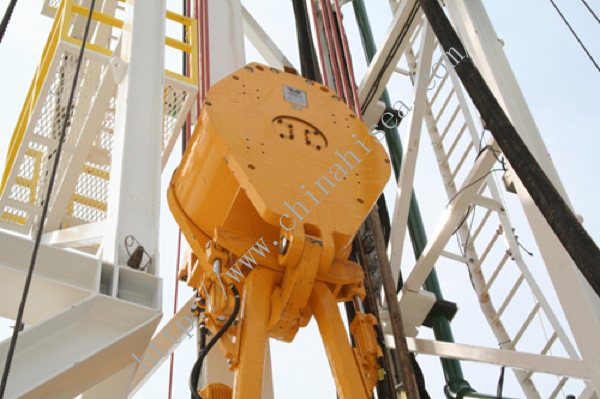

Travelling Block - Operating on Site.jpg
Travelling Block - Operating on Site
