Pneumatic Diaphragm Control Valve:

1. Product Introduction:

(1). Model: ZJHM, ZMAX/BQ

(2). Nominal Pressure: 1.6 Mpa, 2.5 Mpa, 40 Mpa, 6.4 Mpa

(3). Connection Type: Flange

(4). Media: Water

(5). Working Temperature: High Temperature

(6). Driven Term: Air Drive

(7). Shape: Plunger Type

(8). Material: Carbon Steel

(9). Pressure Surrounding: Nomal Pressure

(10). Fluid Way: One Way

(11). Sealing: Hard Seal

(12). Location of Channel: Two General Formula

2. Other Information: (See the Chart)

Name Pneumatic Diaphragm Control Valve
Application Chemical, petroleum, metallurgy, environmental protection, electricity, water, petrochemical, paper, pharmaceutical, light industry, food, beverage plants, woven textile, chemical fiber, teaching equipment and other industries.
Feature Small size, light weight, simple connection, flow, high accuracy regulation
Composition Pneumatic diaphragm actuator and regulating body composition
Noise Low

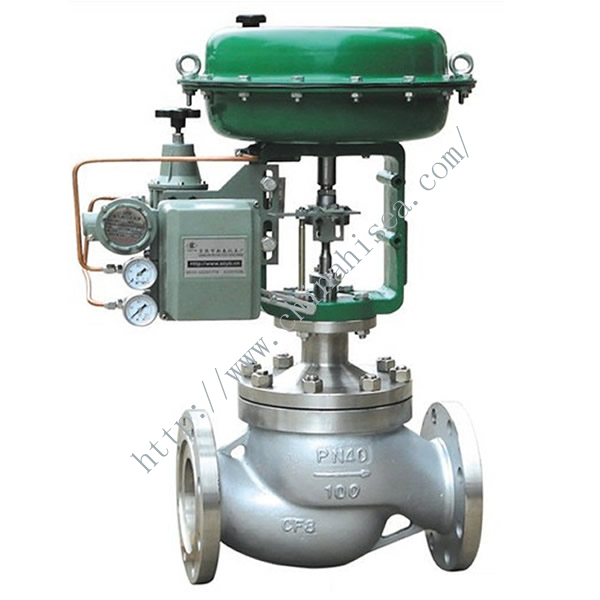

3. Pneumatic Diaphragm Control Valve Green Type:

Pneumatic Diaphragm Control Valve Green

4. Pneumatic Diaphragm Control Valve Red Type:

Pneumatic Diaphragm Control Valve Red

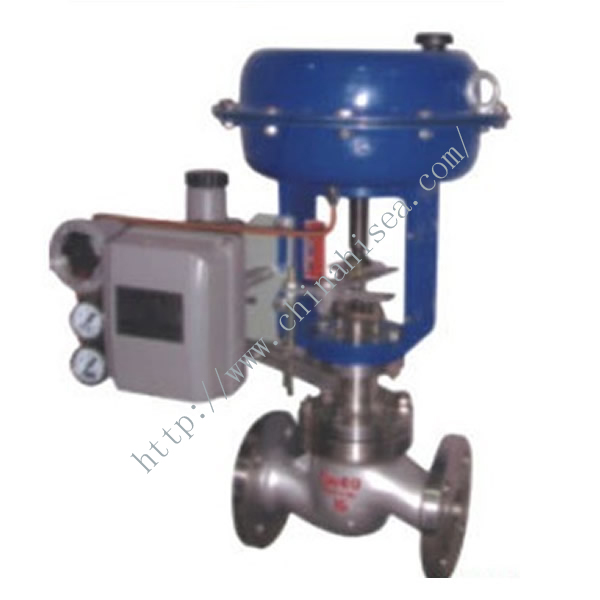

5. Pneumatic Diaphragm Control Valve Blue Type:

Pneumatic Diaphragm Control Valve Blue

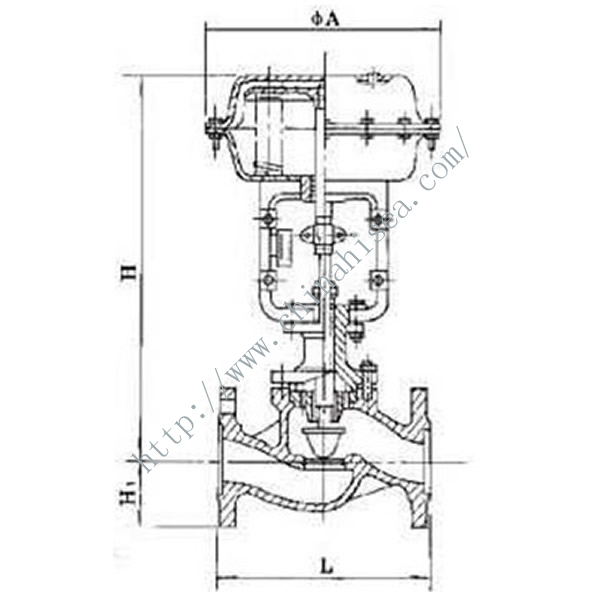

6. Pneumatic Diaphragm Control Valve Working Theory Picture:

Pneumatic Diaphragm Control Valve Working Theory
