570*360 U Shaped Cold Formed Steel Sheet Pile

570*360 U Shaped Cold Formed Steel Sheet Pile

Steel Sheet Pile:

steel sheet piling


Introduction:

Steel sheet pile is a service-proven type familiar to both designers and constructors, which is extensively used for permanent structures, temporary earth-retaining works and temporary cofferdams, etc.
In addition to its rigid structure, its moment of inertia per pile is relatively large, thus allowing repetitive use.
website in a range of sections, with section modulus values ranging from 456 to 4042 cm3/m.

U Sheet Pile have many advantages as following:

1.It combines grest profile depth and has excellent statical properties.2.It is quite suitable for re-use due to the symmetrical form of the single element.
3.It is possible to assemble the piles into pairs in the factory, this way couldimprove the quality and performance of installation.
4.Good corrosion resistanca performance.

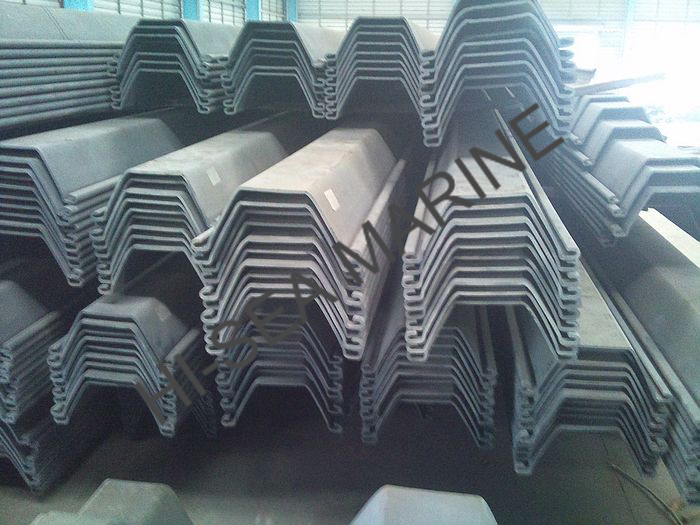

steel sheet pile

Specification:

steel sheet piles

Type

Width

Height

Thickness

Weight

Per pile

Weight

Per wall

Moment

of inertia

Section

modulus

mm

mm

mm

Kg/m

Kg/ m2

Cm4/m

Cm3/m

BMU11-575

575

360

8

60.4

105.1

19685

1094

BMU12-575

575

360

9

67.5

117.4

21973

1221

BMU13-575

575

360

10

74.5

129.5

24224

1346

steel sheet pile

Optional Steel Grades:

Model

Mechanical Feature

Yield(Mpa)

Tensile(Mpa)

Elongation(%)

Impact Energy

Q235B

235

375-460

38

27

Q345B

≥345

470-630

≥21

≥34

Q345C

≥345

470-630

≥21

≥34

MDB350

≥350

470-630

≥21

≥60

MDB380

≥380

480-640

≥21

≥60

Foreign Model

S355J0

≥355

470-630

≥22

≥27

St52-3

≥355

490-630

≥22

≥27

SM490A

≥325

490-610

≥20

SM490B

≥325

490-610

≥20

≥27

SS490

≥285

490-610

≥19

Application:

Cofferdam(land); Cofferdam(Water); Low embankment; Deep foundation pit; Shallow underground excavation; Light-duty Sea Use; Heavy-duty Sea Use; Underground water quality control. etc.

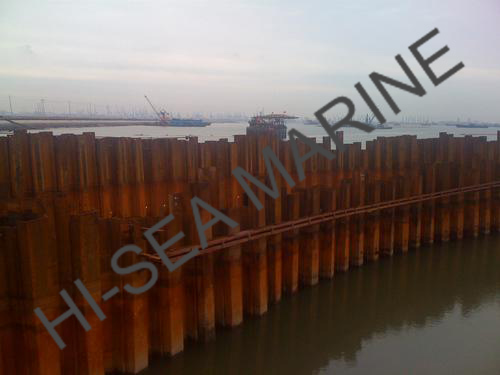

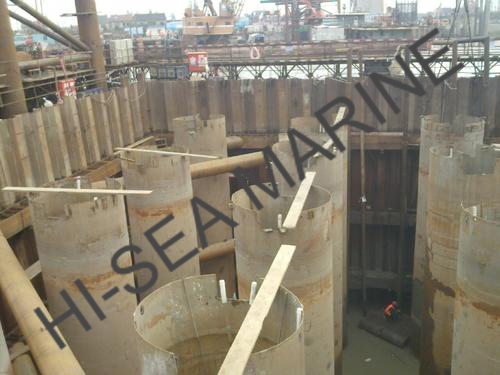

Project Cases:

steel sheet pile steel sheet pile

steel sheet pile steel sheet pile
