AF and AY type Marine Weathertight Single-leaf Steel Door
Standard: GB/T3477-1996
LR,BV,ABS, GL,NK,CCS,DNV certificate supply.
-Watertight or Weathertight door
-With quick action wheel operating mechanisms
-Available in marine quality steel, stainless steel and aluminim materials
-High quality rubber gasket
-Options view port, door closer
-Right-angle or round corners
-Epoxy zinc rich primer coating or anode oxidation-treament
-Design and manufacture special structures required by clients
Available in marine steel, stainless steel and aluminum, copper materials
Hinged type, Water tight/ Weather tight and fireproof marine door
Round or Right Angle corners for option
Quick action wheel operating, Left open/ right open or sliding mechanisms
Rubber gasket three years warranty
Available in view port, door closer
Epoxy zinc rich primer coating (2 layers at least)
Customize available
OEM service and Special requirement is available
Technical Specification:
|
Type |
Code of Standard |
Size of Doorway |
Size of Door |
Opening Size of Wall |
Thickness of Door |
Reinforced Muscle |
|||||||
|
Length (M) |
H3 |
||||||||||||
|
(H*W) |
(H1*W1) |
AF |
AY |
≤80 |
>80 |
≤80 |
80-120 |
120-150 |
150-210 |
210-300 |
|||
|
AF AY |
1050 |
1000*500 |
1055*555 |
1100*600 R80 |
1100*600 R150 |
6 |
- |
75*6 |
- |
- |
- |
- |
- |
|
1260 |
1200*600 |
1255*655 |
1300*700 R80 |
1300*700 R150 |
6 |
- |
75*6 |
- |
- |
- |
- |
400 |
|
|
1460 |
1400*600 |
1455*655 |
1500*700 R80 |
1500*700 R150 |
6 |
8 |
- |
65*9 |
65*9 |
75*9 |
75*9 |
300 |
|
|
1475 |
1400*750 |
1455*805 |
1500*850 R80 |
1500*850 R150 |
6 |
8 |
- |
75*9 |
75*12 |
90*9 |
90*12 |
300 |
|
|
1490 |
1400*900 |
1455*955 |
1500*1000 R80 |
1500*1000 R150 |
- |
8 |
- |
90*9 |
90*12 |
100*12 |
100*12 |
300 |
|
|
1660 |
1600*600 |
1655*655 |
1700*700 R80 |
1700*700 R150 |
- |
8 |
- |
65*9 |
75*9 |
75*12 |
75*12 |
340 |
|
|
1675 |
1600*750 |
1655*805 |
1700*850 R80 |
1700*850 R150 |
- |
8 |
- |
75*12 |
90*9 |
90*12 |
90*12 |
340 |
|
|
1690 |
1600*900 |
1655*955 |
1700*1000 R80 |
1700*1000 R150 |
- |
8 |
- |
90*12 |
100*12 |
125*9 |
125*9 |
340 |
|

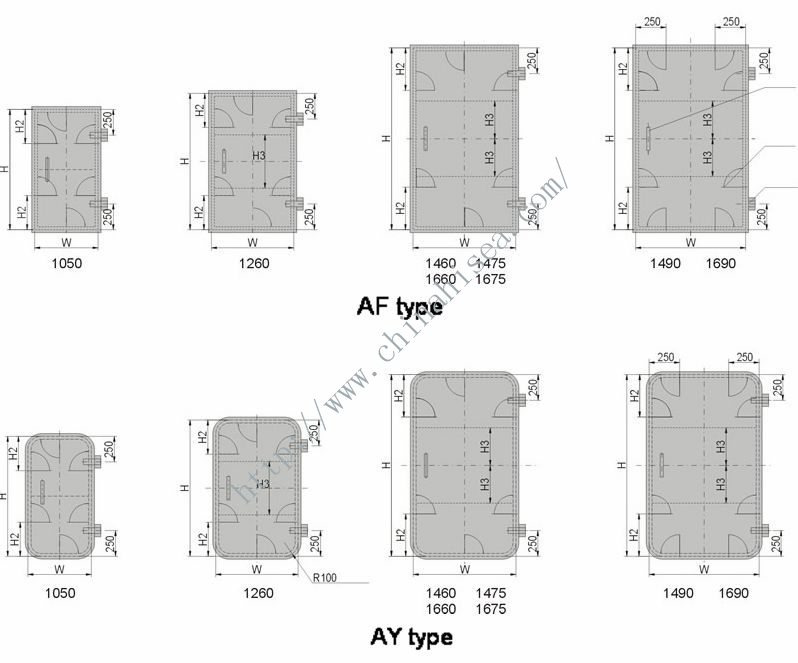

General Drawing:

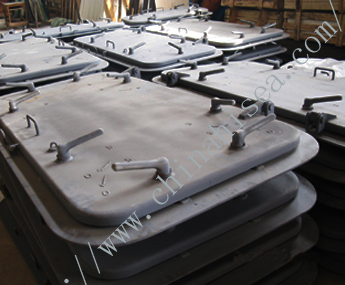

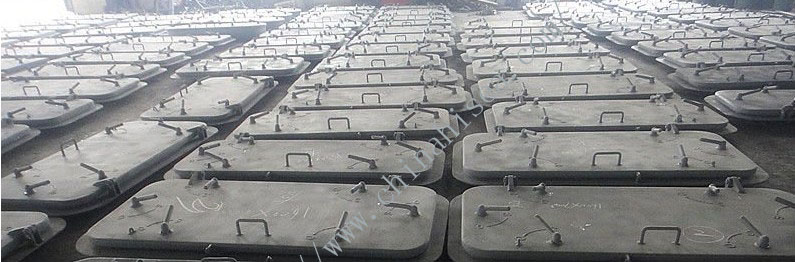

Warehouse:
