Product Name: G-2130A Alloy Bolt Type Shackles Grade 80
Material: Forged Alloy Steel
Spec: • Capacities 2 to 17 metric tons.
• Working Load Limit permanently shown on every shackle.
• Forged Alloy Steel – Quenched and Tempered, with bow and bolt.
• Hot Dip galvanized.
• Shackles are Quenched and Tempered and meets
DNV impact requirements of 42 joules (31 ft. Ibs.) at
-40 degree C (-40 degree F).

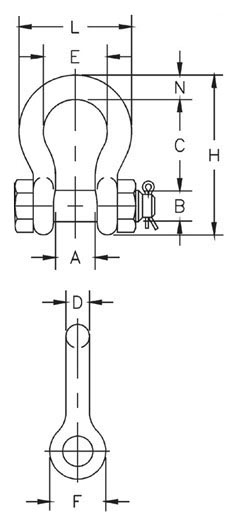

Technical Drawing For G-2130A Alloy Bolt Type Shackles Grade 80:

G-2130A Alloy Bolt Type Shackles Grade 80-drawing.jpg

Technical Parameters For G-2130A Alloy Bolt Type Shackles Grade 80:

Nominal
Size
(in.)
Working
Load
Limit
(t)*
G-2130A
Stock No.
Weight
Each
(kg)
Dimensions Tolerance
+/-
(mm)
A B C D E F H L N C A
1/2 2 12194724 0.36 20.6 16 47.8 12.7 33.3 30.2 83.5 58.5 12.7 3.3 1.5
5/8 3-1/4 12194914 0.62 26.9 19.1 60.5 16 42.9 38.1 106 74.5 17.5 6.35 1.5
3/4 4-3/4 12195164 1.23 31.8 22.4 71.5 19.1 51 46 126 89 20.6 6.35 1.5
7/8 6-1/2 12195344 1.79 36.6 25.4 84 22.4 58 53 148 102 24.6 6.35 1.5
1 8-1/2 12195524 2.28 42.9 28 95.5 25.4 68.5 60.5 167 119 26.9 6.35 1.5
1-1/8 9-1/2 12195784 3.75 46 31.8 108 28.7 74 68.5 190 131 31.8 6.35 1.5
1-1/4 12 12195984 5.31 51.5 35.1 119 31.8 82.5 76 210 146 35.1 6.35 1.5
1-3/8 13-1/2 12196144 7.18 57 38.1 133 35.1 92 84 233 162 38.1 6.35 3.3
1-1/2 17 12196324 8.62 60.5 41.4 146 38.1 98.5 92 254 175 41.1 6.35 3.3

NOTE: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Strength is 6 times the Working Load Limit.
