G-2140 S-2140 Alloy Bolt Type Anchor Shackles

Product Name:	G-2140 S-2140 Alloy Bolt Type Anchor Shackles
Material:	Forged Alloy Steel
Spec:	• Quenched and Tempered. • Alloy bows, Alloy bolts. • Forged Alloy Steel 30 thru 175 metric tons. Cast Alloy Steel 200 thru 400 metric tons. Meets performance requirements of Grade 8 shackles. • Working Load Limit is permanently shown on every shackle. • 30, 40, 55, and 85 metric ton shackle bows are available galvanized or self colored with pins that are galvanized and painted red. • 120, 150, 175 metric ton shackle bows are hot-dip galvanized; pins are painted red. • 200, 250, 300 and 400 metric ton shackle pins are painted red. • Approved for use at -40 degree C (-40 degree F) to 204 degree C (400 degree F). • All sizes are individually proof tested to 2.0 times the Working Load Limit.

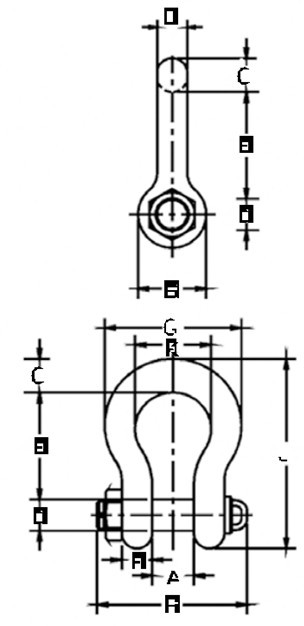

Technical Drawing For G-2140 S-2140 Alloy Bolt Type Anchor Shackles:

G-2140 S-2140 Alloy Bolt Type Anchor Shackles-drawing.jpg

Technical Parameters For G-2140 S-2140 Alloy Bolt Type Anchor Shackles:

Nominal Shackle Size (in.)	Working Load Limit (t)*	Stock No.		Weight Each (kg)	Dimensions											Tolerance
		Stock No.		Weight Each (kg)	(mm)											+ / -
								D
								+/-
		G-2140	S-2140		A	B	C	0.5	E	F	G	H	J	K	L	A	E
2001-1-2	30	1021110	1021129	8.52	60.5	91.9	41.1	41.4	146	35.3	175	196	254	98.6	38.9	3.3	6.4
2001-3-4	40	1021138	1021147	15.4	73.2	106	57.2	50.8	178	44.5	224	237	313	127	46.7	3.3	6.4
2	55	1021156	1021165	23.6	82.6	122	61	57.2	197	50.8	258	264	347	146	52.8	3.3	6.4
2002-1-2	85	1021174	1021183	43.5	105	148	79.2	69.9	267	66.5	324	345	455	184	68.8	6.4	6.4
3	120	1021192	–	81	127	165	92.2	82.6	330	76.2	371	384	546	200	79.2	6.4	6.4
2003-1-2	† 150	1021218	–	120	133	203	111	95.3	372	95.3	432	448	632	229	91.9	6.4	6.4
4	† 175	1021236	–	153	140	229	116	108	368	102	457	517	652	254	102	6.4	6.4
7**	† 400	1021478	–	500	210	356	184	178	572	165	660	728	1022	330	152	6.4	6.4

Note: Maximum Proof Load is 2.0 times the Working Load Limit. Minimum Ultimate Load is 4 times the Working Load Limit on 200 thru 400 metric Tons.

For sizes 30 thru 175 metric Tons, Minimum Ultimate Load is 5.4 times the Working Load Limit. ** Cast Alloy Steel. † Furnished with Round Head Bolts with an eyebolt for handling.
