IEEE 1580 Type P 1kV Cold resistant Marine Control Cable

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable application

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable is suitable for use in commercial marine applications, MODU's & Platforms, onshore and offshore drilling platforms, FPSO, etc.

Control circuit up to 1kV, Control/Signal circuits for motor starter, electrical control system, interconnecting - Fixed installation power control & lighting in both explosion risk and safe areas, general purposes, emergency & critical systems - Designed and constructed for demanding environments and petroleum facilities located throughout the world

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable model

0.6/1kV C(OBS)14PN, 0.6/1kV C(OBS)14PNBS
0.6/1kV C(OBS)16PN, 0.6/1kV C(OBS)16PNBS
0.6/1kV C(OBS)18PN, 0.6/1kV C(OBS)18PNBS
0.6/1kV C(OBS)20PN, 0.6/1kV C(OBS)20PNBS

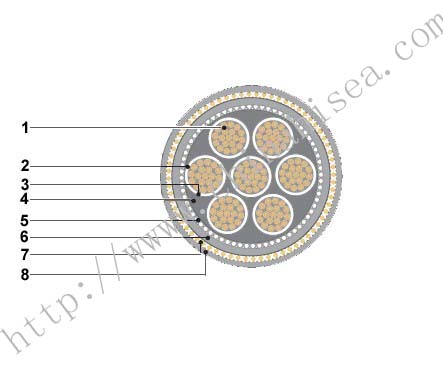

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable construction

1. CONDUCTOR : TINNED ANNEALED ROPE-LAY STRANDED COPPER
*For fire resisting cables, FS-type, mica tape shall be applied over the conductor as a fire proof layer
2. SEPARATOR TAPE (if necessary)
3. INSULATION(TYPE P ACCORDING TO IEEE 1580)
4. FILLER
5. SHIELDING: TINNED COPPER WIRE BRAID
6. JACKET: ARCTIC NEOPRENE
7. ARMOR: BRONZE WIRE BRAID
8. JACKET: ARCTIC NEOPRENE

IEEE 1580 Type P 1kV Cold resistant Marine Power Cable construction.jpg

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable standards

IEEE 1580(2001)
IEEE 45(2002)
UL 1309 / CSA C 22.2 No.245(1995)
100℃ (IEEE 1580 TYPE P)
110℃ UL1309/CSA C22.2 No. 245 Type X 110
FLEXEN 125 (UL 758 125)

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable features

• Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact
• Super-flexible at 4/0 AWG and larger
• Meets IEEE standards for 600V / 1kv

IEEE 1580 Type P 1kV Cold resistant Marine Power Cable specification

Flame retardant IEC 60332-3-22 CAT.A / IEEE 1202
Cold resistant CSA C 22.2 No.38(cold bend @ -40℃ and cold impact @ -35℃)
Drilling Mud Resistant (Water & oil based Mud) NEK 606(2004)
Crush & Impact resistant UL 1277 & UL 2225

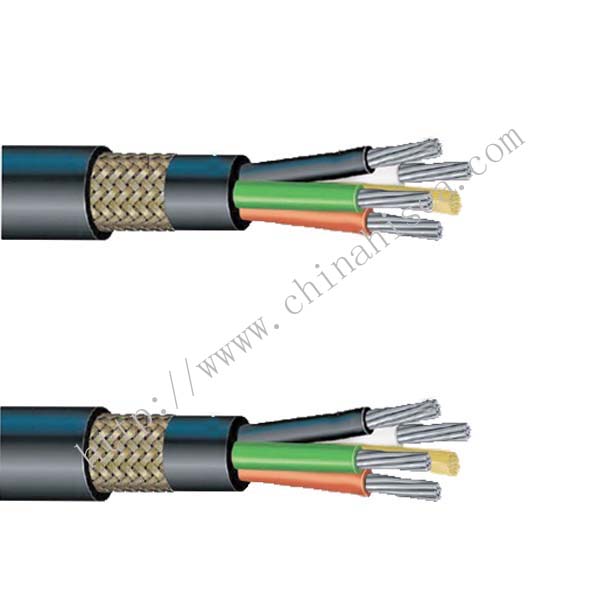

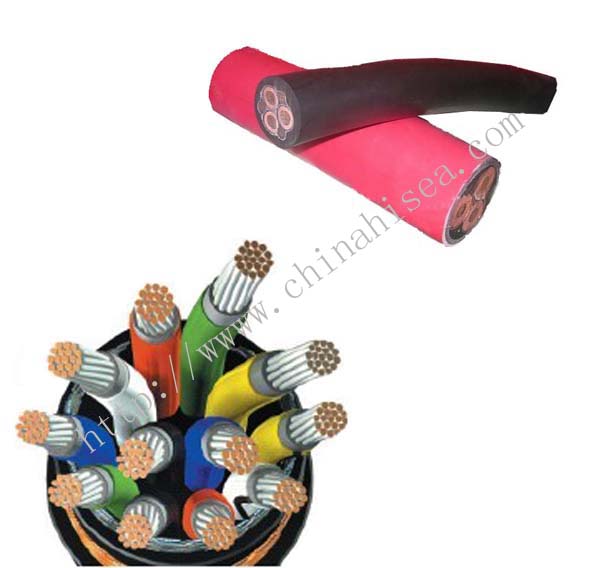

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable shows

IEEE 1580 Type P 1kV Cold resistant Marine Power Cable show4.jpg

IEEE 1580 Type P 1kV Cold resistant Marine Power Cable show3.jpg

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable sample

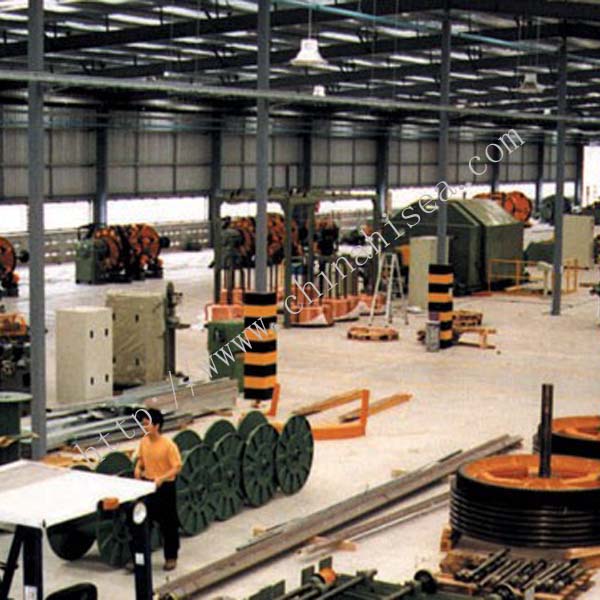

IEEE 1580 Type P 1kV Cold resistant Marine Control Cable workshop

IEEE 1580 Type P 1kV Cold resistant Marine Power Cable workshop.jpg
