SXXI fire resistant instrumentation cable

SXXI fire resistant instrumentation cable

SXXI fire resistant instrumentation cable application

This cable is designed for telephone & instrument circuits up to 150/250V.Suitable for use in commercial marine applications

SXXI fire resistant instrumentation cable standards

- Design guide : IEC 60092-350 & IEC 60092-376
- Insulation material : IEC 60092-351, XLPE
- Sheath material : IEC 60092-359, SHF1
- Flame retardant : IEC 60332-1 & IEC 60332-3 Category A
- Fire retardant : IEC 60331-21(90min) IEC 60331-1,-2(120min)
- Halogen content : IEC 60754-1, 0.5%
- Smoke emission : IEC 61034, 60%

SXXI fire resistant instrumentation cable construction

Classification	Code Letter	Construction Detail
Conductor		Plain (or Tinned), Annealed, Stranded copper wire
Fire resisting layer	S	Mica/Glass Tape (MGT)
Insulation		Cross-linked Polyethylene (XLPE) as per IEC 60092-351
Inner Sheath	X	None
Armor	X	None
Outer Sheath	I	Halogen Free Thermoplastic compound (IEC 60092-359, SHF1) Sheath color - Non-intrinsically safe cable : Black - Intrinsically safe cable : Blue

Note.

The other color of sheath and insulation may be applicable when purchaser required.

Stranded tinned annealed copper wire as per IEC 60228, Class 2 may be applicable when purchaser required

SXXI fire resistant instrumentation cable construction

SXXI fire resistant instrumentation cable feature

1.Fire resistant

2.halogen free

3.low smoke

4.Operating temperature: Maximum 90°C

SXXI fire resistant instrumentation cable specification

Cores: 1P, 2P,3P,4P,5P,7P,10P,12P,14P,16P,19P,20P, 24P, 30P (P:Pair)
1T, 2T,3T,4T,5T,7T,10T,12T,14T,16T,19T,20T, 24T, 30T (Triad)
Size (sqmm): 0.75, 1, 1.5, 2.5

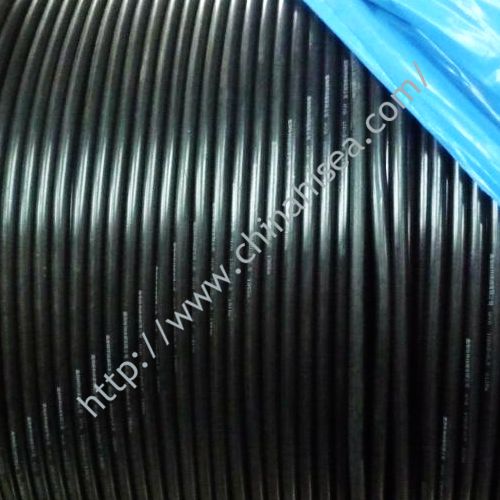

SXXI fire resistant instrumentation cable show
