IEEE 1580 type P 1kv Armored offshore signal cable

IEEE 1580 type P 1kv Armored offshore signal cable

IEEE 1580 type P 1kv Armored Offshore signal cable

IEEE 1580 type P 1kv Armored Offshore signal cable application

Type P Marine and Offshore Cable is primarily designed for power, control, signal and instrumentation applications for offshore, land rigs, marine vessels and oil and gas drilling rigs.
IEEE 1580 type P 1kv Armored Offshore signal cable is suitable for use in commercial marine applications, MODU's & Platforms, onshore and offshore drilling platforms, FPSO, etc.
Power circuit up to 1KV, Lighting circuits, Trace heating circuits- Fixed installation power & lighting in both explosion risk and safe areas, general purposes, emergency & critical systems- Designed and constructed for demanding environments and petroleumfacilities located throughout the world.

IEEE 1580 type P 1kv Armored Offshore signal cable model

0.6/1kV TP(OS)14PN, 0.6/1kV TP(OS)14PNBS
0.6/1kV TP(OS)16PN, 0.6/1kV TP(OS)16PNBS
0.6/1kV TP(OS)18PN, 0.6/1kV TP(OS)18PNBS
0.6/1kV TP(OS)20PN, 0.6/1kV TP(OS)20PNBS
0.6/1kV TP(OS)22PN, 0.6/1kV TP(OS)22PNBS
0.6/1kV TT(OS)16PN, 0.6/1kV TT(OS)16PNBS
0.6/1kV TT(OS)18PN, 0.6/1kV TT(OS)18PNBS
0.6/1kV TT(OS)20PN, 0.6/1kV TT(OS)20PNBS

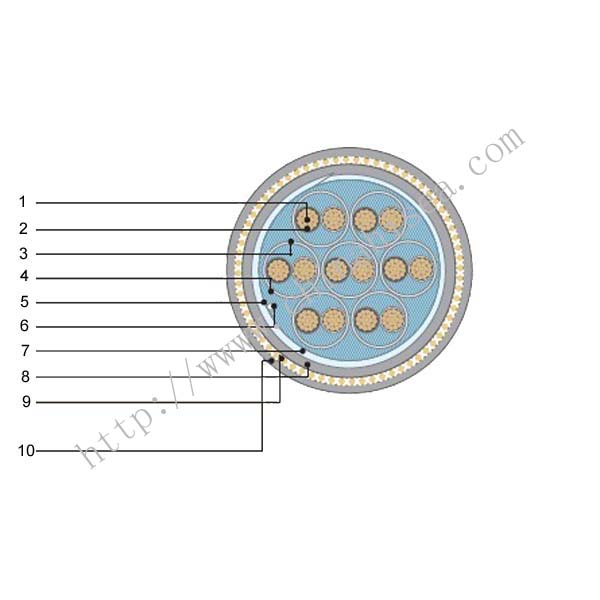

IEEE 1580 type P 1kv Armored Offshore signal cable construction

1. CONDUCTOR : TINNED ANNEALED ROPE-LAY STRANDED COPPER
2. SEPARATOR TAPE (if necessary)
3. INSULATION(TYPE P ACCORDING TO IEEE 1580)
4. FILLER
5. BINDER TAPE
6. DRAIN WIRE
7. SHIELDING : ALUMINUM POLYESTER TAPE
8. JACKET : ARCTIC NEOPRENE
9. ARMOR : BRONZE WIRE BRAID
*Suitable tape may be applied over/under braid armor
10. JACKET : ARCTIC NEOPRENE

IEEE 1580 type P 1kv Armored Offshore power cable construction.jpg

IEEE 1580 type P 1kv Armored Offshore signal cable standards

IEEE 1580(2001)
IEEE 45(2002)
UL 1309 / CSA C 22.2 No.245(1995)
100 (IEEE 1580 TYPE P)
110 UL1309/CSA C22.2 No. 245 Type X 110
FLEXEN 125 (UL 758 125)

IEEE 1580 type P 1kv Armored Offshore signal cable features

• Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact
• Super-flexible at 4/0 AWG and larger
• Meets IEEE standards for 1kV

• Excellent resistance to oil, abrasion, petrochemical fluids, moisture & sunlight.

• Type LSX, LSE, TOP, & L(Low Smoke Halogen Free) available

• Superior flexibility

IEEE 1580 type P 1kv Armored Offshore signal cable specification

Flame retardant IEC 60332-3-22 CAT.A / IEEE 1202
Cold resistant CSA C 22.2 No.38(cold bend @ -40℃ and cold impact @ -35℃ )
Drilling Mud Resistant (Water & oil based Mud) NEK 606(2004)
Crush & Impact resistant UL 1277 & UL 2225

IEEE 1580 type P 1kv Armored Offshore signal cable shows

IEEE 1580 type P 1kv Armored Offshore power cable sample.jpg

IEEE 1580 type P 1kv Armored Offshore signal cable sample

IEEE 1580 type P 1kv Armored Offshore signal cable workshop

IEEE 1580 type P 1kv Armored Offshore power cable processing.jpg

IEEE 1580 type P 1kv Armored Offshore signal cable processing
