IEEE 1580 type P 2kv Power cable

IEEE 1580 type P 2kv Power cable

IEEE 1580 type P 2kv Power cable

IEEE 1580 type P 2kv Power cable application

IEEE 1580 type P 2kv Power cable is suitable for use in commercial marine applications, MODU's & Platforms Onshore and offshore drilling platforms FPSO, etc.

Type P Marine and Offshore Cable is primarily designed for power, control, signal and instrumentation applications for offshore, land rigs, marine vessels and oil and gas drilling rigs.

Type P cables have excellent resistance to oil, abrasion, moisture, sunlight and ester-based mud (Type P-MR).

They are suitable for use in Class I, Division I and Zone I applications and meet the crush and impact resistance requirements (C&IR) of UL 2225. (Armored & sheathed version only.)

The standard insulation has a continuous operating temperature of 125ºC allowing for higher ampacity levels. Larger diameter cables carry a new flexible design. They satisfy Transport Canada’s cold bend at -40ºC and cold impact at -35ºC (CSA C 22.2 No. 0.3).

This product is readily available in an armored and sheathed version and unarmored version.

IEEE 1580 type P 2kv Power cable model

SP2kV(HD), SPBS2kV(HD)
0.6 / 1kV SP, 0.6 / 1kV SPB, 0.6 / 1kV SPBS(Switchboard Wire)
0.6 / 1kV SP, 0.6 / 1kV SPB, 0.6 / 1kV SPBS(Power Distribution Cable)

IEEE 1580 type P 2kv Power cable construction

1. CONDUCTOR : TINNED ANNEALED ROPE-LAY STRANDED COPPER
2. SEPARATOR TAPE (if necessary)
3. INSULATION(TYPE P ACCORDING TO IEEE 1580)
4. ARMOR : BRONZE WIRE BRAID
*Suitable tape may be applied over / under braid armor
5. JACKET : ARCTIC NEOPRENE

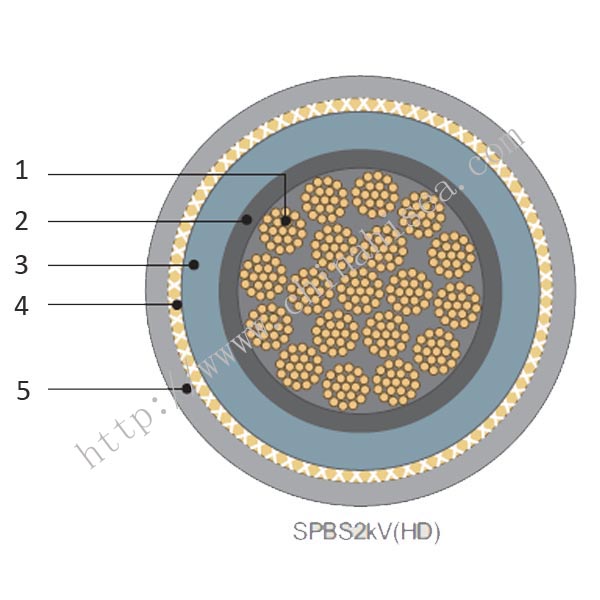

SPBS2KV(HD) Construction.jpg

IEEE 1580 type P 2kv Power cable standards

IEEE 1580(2001)
IEEE 45(2002)
UL 1309 / CSA C 22.2 No.245(1995)
100℃ (IEEE 1580 TYPE P)
110℃ UL1309/CSA C22.2 No. 245 Type X 110
FLEXEN 125 (UL 758 125)

IEEE 1580 type P 2kv Power cable features

Flame retardant : IEC 60332-3-22 CAT.A / IEEE 1202
Cold resistant : CSA C 22.2 No.38(cold bend @ -40℃ and cold impact @ -35 ℃)
Drilling Mud Resistant(Water & oil based Mud) : NEK 606(2004)
Crush & Impact resistant : UL 1277 & UL 2225
Excellent resistance to oil, abrasion, petrochemical fluids, moisture & sunlight.
Type LSX, LSE, TOP, & L(Low Smoke Halogen Free) available
Superior flexibility

IEEE 1580 type P 2kv Power cable specification

Type Designation Conductor
(AWG•mm2)
Sheath Thickness (in•mm) Cable Dia. (nom)
(in•mm)
Impedance
(Ω/kft - Ω/km)
Inductance (mH/kft•mH/km) Capacitance (pF/ft•pF/m) Calculated Ampacity†
(95•100•110)
Cable Weight (Lbs/mft•Kg/km)
SP2KV-8 8 0.055•1.40 0.265•6.7 0.695•2.28 0.108•0.354 82•269 67•72•77 74•111
SP2KV-6 6 0.055•1.40 0.326•8.3 0.442•1.45 0.099•0.324 108•354 90•96•103 110•164
SP2KV-5 5 0.055•1.40 0.354•9.0 0.332•1.09 0.097•0.318 120•393 111•109•117 147•220
SP2KV-4 4 0.055•1.40 0.38•9.7 0.277•0.91 0.095•0.312 131•430 122•128•137 170•254
SP2KV-3 3 0.055•1.40 0.42•10.7 0.221•0.72 0.092•0.302 148•485 142•146•156 206•307
SP2KV-2 2 0.055•1.40 0.449•11.4 0.176•0.58 0.090•0.295 160•525 162•169•181 251•374
SP2KV-1 1 0.065•1.65 0.519•13.2 0.141•0.46 0.091•0.298 158•518 197•194•208 341•507
SP2KV-1/0 1/0 0.065•1.65 0.549•13.9 0.113•0.37 0.089•0.292 168•551 223•227•243 405•603
SP2KV-2/0 2/0 0.065•1.65 0.594•15.1 0.092•0.30 0.088•0.289 184•604 250•262•281 499•742
SP2KV-3/0 3/0 0.065•1.65 0.684•17.4 0.075•0.25 0.086•0.282 216•708 304•300•321 668•994
SP2KV(HD)-4/0 4/0•112.6 0.105•2.7 .821•20.9 0.07•0.2 0.11•0.4 146•479 344•351•376 896•1333
SP2KV(HD)-262 262•133.1 0.105•2.7 .895•22.7 0.06•0.2 0.10•0.3 162•531 382•407•436 1035•1540
SP2KV(HD)-313 313•158.7 0.105•2.7 .966•24.5 0.06•0.2 0.10•0.3 175•574 426•455•487 1227•1826
SP2KV(HD)-373 373•189.2 0.105•2.7 1.033•26.2 0.05•0.2 0.10•0.3 189•620 476•516•553 1424•2119
SP2KV(HD)-444 444•225.2 0.105•2.7 1.114•28.3 0.05•0.2 0.10•0.3 205•672 531•588•630 1707•2540
SP2KV(HD)-535 535•271.3 0.120•3.1 1.227•31.2 0.04•0.1 0.10•0.3 200•656 596•630•675 2025•3014
SP2KV(HD)-646 646•327.5 0.120•3.1 1.331•33.3 0.04•0.1 0.10•0.3 216•708 670•731•783 2429•3615
SP2KV(HD)-777 777•394.2 0.120•3.1 1.424•36.2 0.04•0.1 0.10•0.3 236•774 754•822•881 2896•4310
SP2KV(HD)-1111 1111•563.0 0.120•3.1 1.675•42.5 0.04•0.1 0.10•0.3 257•843 942•1025•1098 3946•5872

IEEE 1580 type P 2kv Power cable show

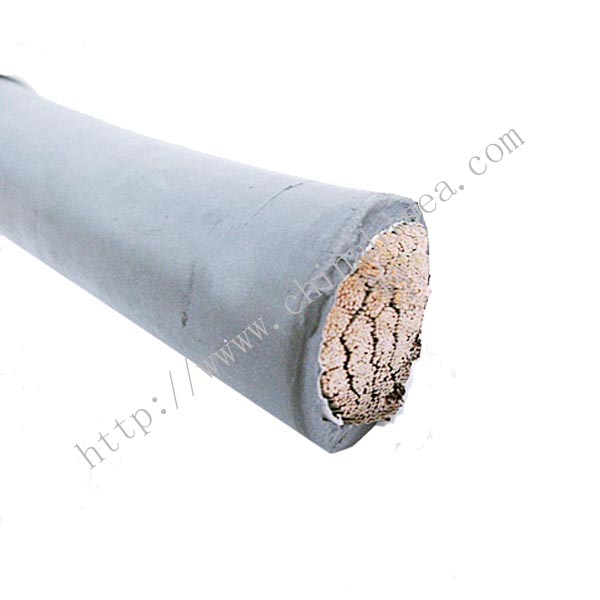

SP2KV(HD) Sample.jpg

SP2KV(HD) Cable Sample
