1.5m3/h Bilge Water Separator

1. Protecting the ecosystem of the oceans, ship owners' best choice, the YWC series Bilge Water Separator.

Water is the source of all life on our planet. If the balance of the extremely sensitive ecosystem of the oceans is exposed to any danger, all other ecosystems are also in great danger. This asset, which cannot be reproduced, accordingly requires the most effective protection that modern technology can offer. For this purpose, the International Maritime Organisation (IMO) and national legislative authorities have issued strict laws and directives involving fines running into eight digits in the event of failure to comply even in minor cases.

These justified regulations mean that ship owners have to cope with considerable costs and risks that cannot be managed cost-effectively with conventional separating systems. The YWC series Bilge Water Separator secure the oceans’ sensitive ecosystems extremely effectively and also provide protection for the value of the ship owner’s investment.

The main benefits of the separator are the high separating efficiency, continuous unmanned operation combined with pronounced service friendliness and, of course, the significantly reduced disposal costs associated with the method.
The separator meets the prevailing statutory regulations of the IMO with a residual oil content of much less than 15 ppm. The series separator has been awarded type approval according to the IMO Resolution MEPC 107(49).

2. There is one high quality Bilge Water Separator for 10-30KDWT ships, 1.5m3/hr capacity.

Model		YWC-1.5
Technical Specifications		1.5
Rated capacity(m3/h)		1.5
Oil content of the discharged water		≤15ppm
Power of the electric heater(kw)		6kw
Electrical System		380V/50Hz/φ, 415V/50Hz/3φ, 440V/60Hz/3φ, 480V/60HZ/3φ, etc.
Power of the electric motor		1.1kw
Suction head		≤6m-H2O
Pressure of the discharged water		5-10m-H2O
Outline Dimension(LWH)(mm)		110011301650
Base		6#
Weight (kg)	Dry Weight	1060
	Wet Weight	1650

3. Sure, we also have many other models for any capacity ships.

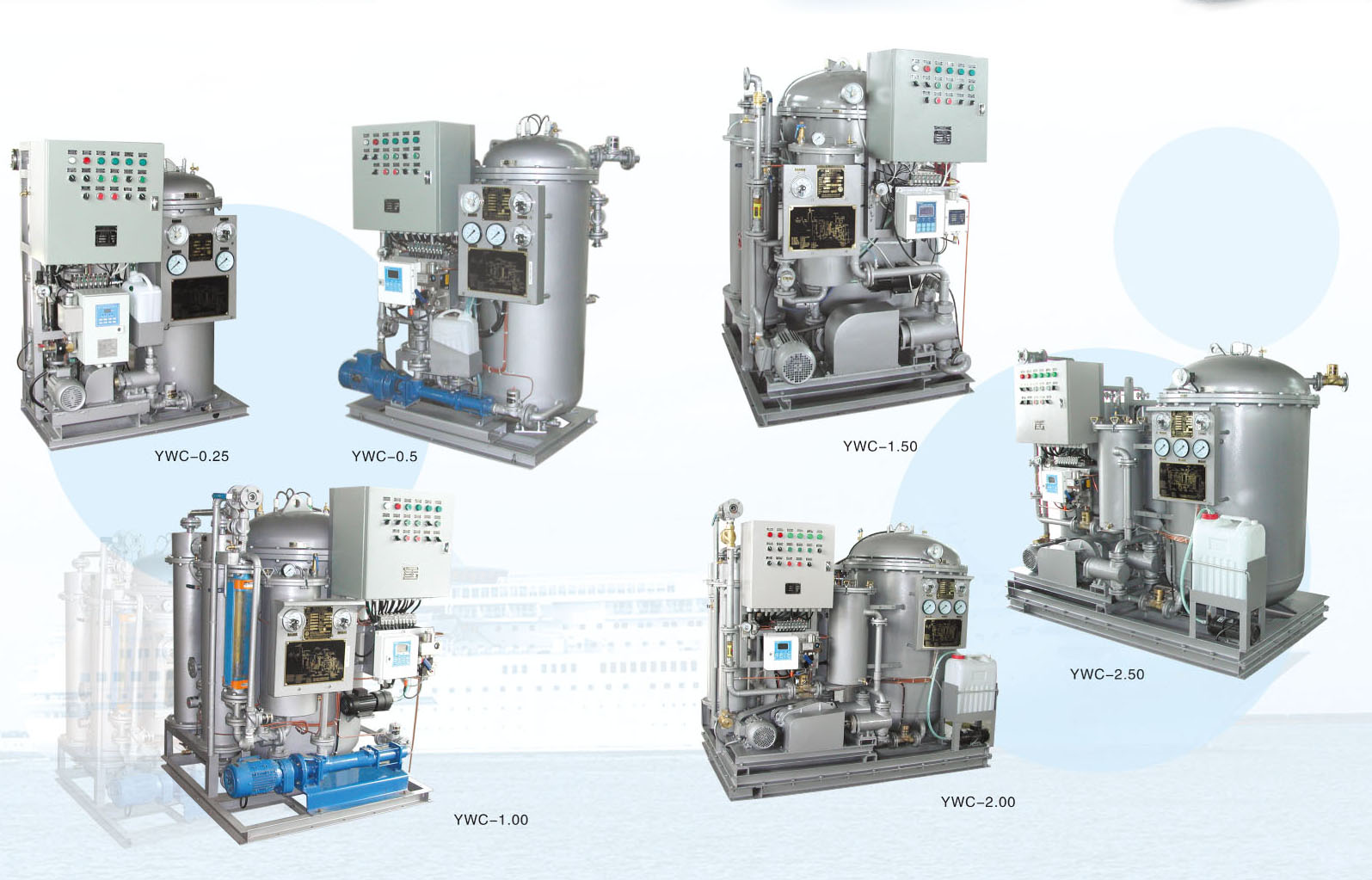

Model		YWC-
Technical Specifications		0.25	0.5	1	1.5	2	2.5	3	4	5
Rated capacity(m3/h)		0.25	0.5	1	1.5	2	2.5	3	4	5
Oil content of the discharged water		≯15ppm
Power of the electric heater（kw）		1kw	3kw	6	6	6	6	6	12	12
Electrical System		AC 380V/50Hz/3φ, AC 415V/50Hz/3φ, AC 440/60Hz/3φ, AC 480V/60HZ/3φ, etc.
Power of the electric motor		0.37kw	0.55kw	0.75kw	1.1kw	1.1kw	1.5kw	1.5kw	2.2kw	2.2kw
Suction head		≯6m-H2O
Pressure of the discharged water		5-10m-H2O
Outline Dimension（LWH）(mm)		1000600 1250	1100690 1460	10501000 1620	11001130 1650	19001120 1700	19001120 1900	17001500 1900	22801700 1900	25902000 1900
Base		5#	6#	6#	6#	8#	8#	8#	10#	10#
Weight	Dry Weight	400	600	800	1060	1260	1500	1800	2100	2500
	Wet Weight	550	900	1200	1650	2260	2800	3200	3900	4600
Applicable Vessel (KDWT)		<1	1-5	5-10	10-30	30-50	50-100	100-200	100-300	>300
