Galvanized Wire Rope

Galvanized Wire Rope

Galvanized Wire Rope

Construction:6x19+FC

Type: hot dip galvanized wire rope

Material: Steel

Features: Wires in strands are point contact lay. Wires in different layers are in the same diameter, but different in pitch of twist. This 6x19+FC Round Strand Steel Wire Rope can bear heavy capacity, with high tensile strength. Its safety factor is high. There is certain quality of reliability. After galvanized, the corrosion resistance quality is excellent.

Finish: Galvanized

Main Application: cranes, loading and unloading ships, fishing trawl and aviation

Construction Drawing of 6x19+FC


Technical parameters of 6x19+FC Galvanized Wire Rope

6x19+FC Galvanized Wire Rope

Nominal Diameter

(mm)

Approx. Weight(kg/100m)

Nominal Tensile Strength of Rope(MPa)

1570

1670

1770

1870

1960

Minimum Breaking Load of Rope(KN)

FC

IWR/IWS

FC

IWR/IWS

FC

IWR/IWS

FC

IWR/IWS

FC

IWR/IWS

FC

IWR/IWS

3

3.16

3.60

4.34

4.69

4.61

4.99

4.89

5.29

5.17

5.59

5.42

5.86

4

5.62

6.40

7.71

8.34

8.20

8.87

8.69

9.40

9.19

9.93

9.63

10.4

5

8.78

10.0

12.0

13.0

12.8

13.9

13.6

14.7

14.4

15.5

15.0

16.3

6

12.6

14.4

17.4

18.8

18.5

20.0

19.6

21.2

20.7

22.4

21.7

23.4

7

17.2

19.6

23.6

25.5

25.1

27.2

26.6

28.8

28.1

30.4

29.5

31.9

8

22.5

25.6

30.8

33.4

32.8

35.5

34.8

37.6

36.7

39.7

38.5

41.7

9

28.4

32.4

39.0

42.2

41.5

44.9

44.0

47.6

46.5

50.3

48.7

52.7

10

35.1

40.0

48.2

52.1

51.3

55.4

54.3

58.8

57.4

62.1

60.2

65.1

11

42.5

48.4

58.3

63.1

62.0

67.1

65.8

71.1

69.5

75.1

72.8

78.7

12

50.5

57.6

69.4

75.1

73.8

79.8

78.2

84.6

82.7

89.4

86.7

93.7

13

59.3

67.6

81.5

88.1

86.8

93.7

91.8

99.3

97.0

105

102

110

14

68.8

78.4

94.5

102

101

109

107

115

113

122

118

128

15

79.0

90.0

108

117

115

125

122

132

129

140

135

146

16

89.9

102

123

133

131

142

139

150

147

159

154

167

17

101

116

139

151

148

160

157

170

166

179

174

188

18

114

130

156

169

166

180

176

190

186

201

195

211

20

140

160

193

209

205

222

217

235

230

248

241

260

22

170

194

233

252

248

268

263

284

278

301

291

315

24

202

230

278

300

295

319

313

339

331

358

347

375

26

237

270

326

352

347

375

367

397

388

420

407

440

28

275

314

378

409

402

435

426

461

450

487

472

510

30

316

360

434

469

461

499

489

529

517

559

542

586

32

359

410

494

534

525

568

556

602

588

636

616

666

34

406

462

557

603

593

641

628

679

664

718

696

752

36

455

518

625

676

664

719

704

762

744

805

780

843

38

507

578

696

753

740

801

785

849

829

897

869

940

40

562

640

771

834

820

887

869

940

919

993

963

1040

42

619

706

850

920

904

978

959

1040

1010

1100

1060

1150

44

680

774

933

1010

993

1070

1050

1140

1110

1200

1160

1260

46

743

846

1020

1100

1080

1170

1150

1240

1210

1310

1270

1380

48

809

922

1110

1200

1180

1280

1250

1350

1320

1430

1390

1500

50

787

1000

1210

1300

1280

1390

1360

1470

1440

1550

1500

1630

52

949

1080

1300

1410

1390

1500

1470

1590

1550

1680

1630

1760

54

1024

1170

1410

1520

1500

1620

1580

1710

1670

1810

1750

1900

56

1100

1250

1510

1630

1610

1740

1700

1840

1800

1950

1890

2040

58

1180

1350

1620

1750

1720

1870

1830

1980

1930

2090

2020

2190

60

1260

1440

1740

1880

1850

2000

1960

2120

2070

2240

2170

2340

62

1350

1540

1850

2000

1970

2130

2090

2260

2210

2390

2310

2500

64

1440

1640

1970

2140

2100

2270

2230

2410

2350

2540

2460

2670

66

1530

1740

2100

2270

2230

2420

2370

2560

2500

2700

2620

2830

68

1620

1850

2230

2410

2370

2560

2510

2720

2650

2870

2780

3010

70

1720

1960

2360

2550

2510

2720

2660

2880

2810

3040

2950

3190

72

1820

2070

2500

2700

2660

2870

2820

3050

2980

3220

3120

3370

74

1920

2190

2640

2850

2810

3040

2980

3220

3140

3400

3300

3560

76

2030

2310

2780

3010

2960

3200

3140

3390

3320

3590

3480

3760

78

2140

2430

2930

3170

3120

3370

3310

3580

3490

3780

3660

3960

80

2250

2560

3080

3340

3280

3550

3480

3760

3670

3970

3850

4160

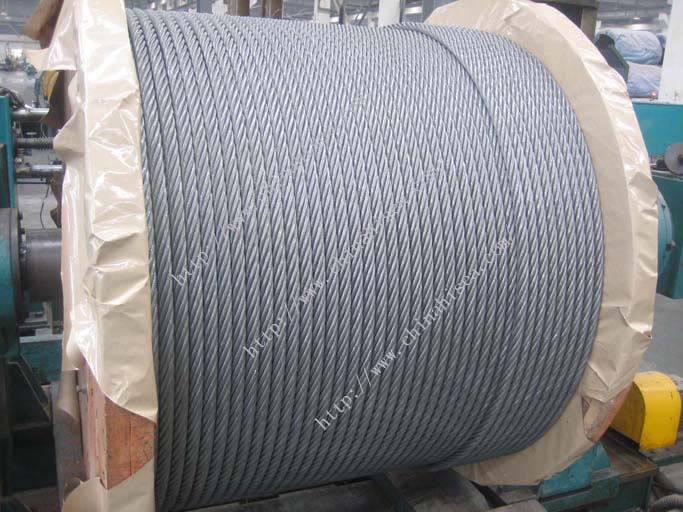

Packing by Reel:

Galvanized Wire Rope.jpg
