Grade 80 Eye Type Self Locking Hooks
Name: Grade 80 Eye Type Self Locking Hooks (Compact)
Application: used with Grade 80 chains, as tie down or towing chains and on wire/fiber rope slings
Standard: meet BS-EN 1677-3
Material and Process: alloy steel, quenched and tempered
Finish: painted. Galvanized surface types are available at the same time. Marked with manufacturer identification and material grade
Spare locking system trigger kits available
Technical Specification of this Grade 80 Eye Type Self Locking Hooks
Product Model |
Chain Diameter (mm) |

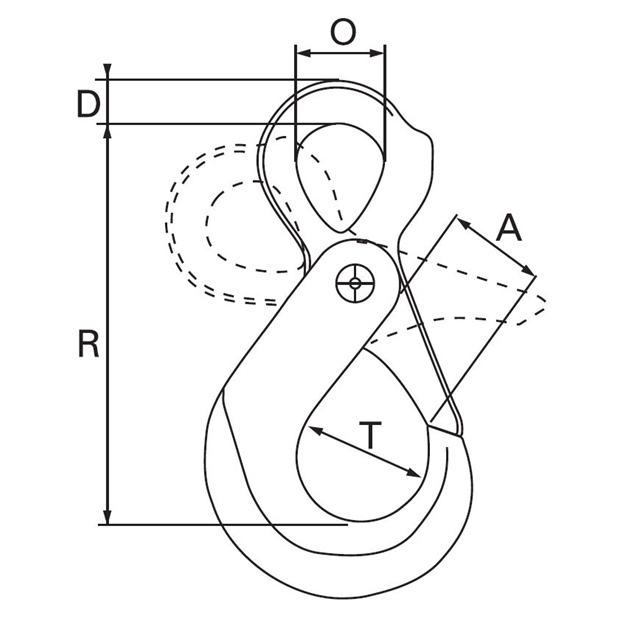

Dimension (mm) |
Working Load Limit |
Rated Test Force |
Breaking Force |
Weight |
||||
A |
D |
O |
R |
T |
tones |
KN |
KN/min |
kgs/pc |
||
G8EL-36 |
7/8 |
27 |
10 |
26 |
112 |
36 |
2 |
50.3 |
80.4 |
0.55 |
G8 EL -46 |
10 |
38 |
13 |
33 |
151 |
46 |
3.15 |
78.5 |
126 |
1.12 |
G8 EL -60 |
13 |
46 |
16 |
42 |
185 |
60 |
5.3 |
133 |
212 |
2.22 |
G8 EL -75 |
16 |
57 |
18 |
52 |
230 |
75 |
8 |
201 |
322 |
4.00 |
