JIS F7301 Marine Bronze Flange Globe Valve 5K

JIS F7301 Marine Bronze Flange Globe Valve 5K:

1.Applicable scope:

The products are used for preventing refluence in fuel oil piping, lubrication oil piping and water piping at tempereature 120℃ or less. Dimensions of flange are according to JIS B2220 falange dimensions of steel pipe.

2.MAIN DATA FOR JOINING(mm)

DN	L	H	Flange dimensions					Hand wheel
			D	C	t	n	d	Do	s
15	100	130	80	60	9	4	12	80	8
20	110	140	85	65	10	4	12	100	10
25	120	160	95	75	10	4	12	125	10
32	140	170	115	90	12	4	15	125	10
40	160	190	120	95	12	4	15	140	12
50	210	235	130	105	14	4	15	140	12
65	250	260	155	130	14	4	15	160	14

3.Material of major parts

Part name	Material
	Name	Mark
Body Bonnet	Tin-bronze	ZQSn10-21
Disc.Seat	Albronze	QAL9-21
Packing	PTFE	SFT-2

4.Capability

Nominal Pressure	5kgf/cm³(0.49MPa)	Medium	Max Pressure kgf/cm³(Mpa)
Seal Pressure	7.7kgf/cm³(0.76MPa)	Oil & flow water	5kgf/cm³(0.49MPa)
Intensity Pressure	10.5kgf/CM³(1.046MPa)	Lenitic water≤ 120℃	7kgf/cm³(0.69MPa)

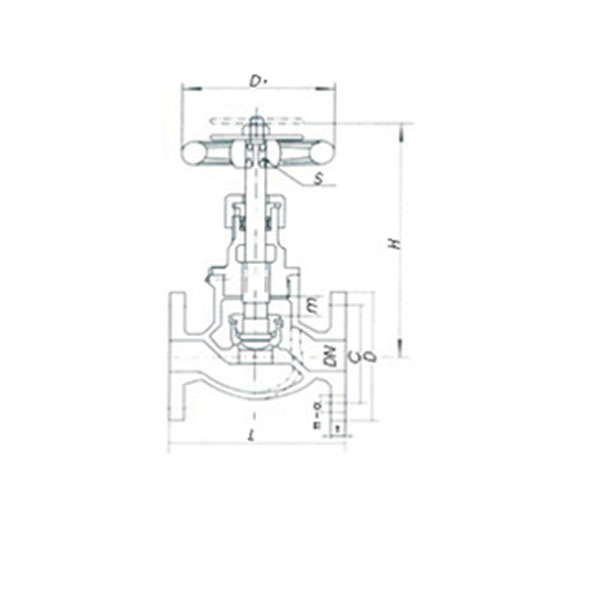

5. Schematic drawing

6. Certification

Standard: GB, BS, JIS, JPI, DIN, API can be offered.

Certificates: ABS, BV, GL, KR, RINA, DNV,KR, WK, LR, IRS are availabe at request.

7. Packing

After inspection, products are carefully packed in wooden case or carefully packed in Carton.

8. Shipping

(1). EMS, DHL, TNT, UPS 2-5 working days

(2). International air mail: around 5-15 working days

(3). By sea: around 10-25 working days
