Description

Used for doorway of superstructure above freeboard deck or deck house to meet ISO 6042-1998

1. Class of door and application

A-Front bulkhead on the 1st deck above freeboard.

B-Front bulkhead on the 2nd deck above freeboard and back & side bulkhead on the first deck.

C-Front bulkhead on the 3rd deck above freeboard and back & side bulkhead on the 2nd deck.

D-Bulkhead on the 4th deck and the above, back & side bulkhead on the 3rd deck.

2. Type and specification of door

Hisea Catalog-Door 2-511.png

3. Type AF, AY steel weathertight door

AF- marine square corner steel door (level A)

Hisea Catalog-Door 2-552.png

AY- marine round corner steel door (level A), radiused corner steel door

Hisea Catalog-Door 2-557.png

Level A steel door test request: it should pass the hose test with nozzle diameter 12.5mm and water pressure 0.25MPa.

Hisea Catalog-Door 2-677.png

4. Type BF, BY, CF, CY steel weathertight door

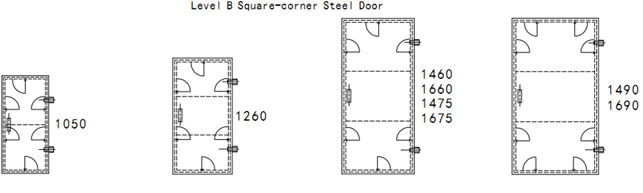

BY- marine square corner steel door (level B)

Hisea Catalog-Door 2-770.png

BF- marine round corner steel door (level B)

Hisea Catalog-Door 2-765.png

Hisea Catalog-Door 2-771.png

Level B steel door test request: It should pass the hose test with nozzle diameter 12.5mm and water pressure 0.25MPa.

CY- marine round corner steel door (level C) CF- marine square corner steel door (level C)

Hisea Catalog-Door 2-975.png

marine round corner steel door with fixed window (level C) marine square corner steel door with fixed window (level C)

Hisea Catalog-Door 2-977.png

Fixed steel round window can be installed on level C steel doors, with diameter 250mm, code G.

Level C door test request: it should pass the hose test with nozzle diameter 12.5mm and water pressure 0.25MPa.

Hisea Catalog-Door 2-1186.png

5. Type DF, DY steel door

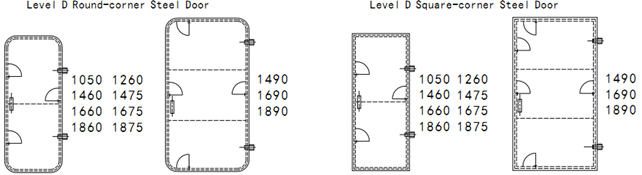

DY- marine round corner steel door (level D) DF- marine square corner steel door (level D)

Hisea Catalog-Door 2-1287.png

marine round corner steel door with fixed window (level D) marine square corner steel door with fixed window (level D)

Hisea Catalog-Door 2-1289.png

Fixed steel round window can be installed on level D steel doors, with diameter 250mm, code G.

Level D door test request: it should pass the hose test from top to bottom, without water pressure requirement.

Hisea Catalog-Door 2-1499.png
