0.38/0.66kv Shearer rubber sheath flexible cable

1. rated voltage Uo / U 0.36/0.66KV

2.used to power rated vlotage 0.38/0.66kv shearer and similar equiipments

3.long-term allowable working temperature of cable conductor to 65 ℃.

4.the minimum bend radius of the cable is 6 times the diameter of the wire.

5.yellow sheathed shall not be long-term exposured to sunlight.

If you feel this is not what you are looking for,please kindly check more cable here,or you can use the search form on the upper right corner.

Shearer rubber sheath flexible cable Model

Model Product Name Applications
MC-0.38/0.66 Shearer Rubber Sheath Flexible Cable Power Cord for shearer and similar Equipment rated voltage 0.38/0.66kv
MCP-0.38/0.66 Shearer Shield Rubber Sheath Flexible Cable Power Cord for shearer and similar equipments rated voltage 0.38/0.66kv
MCP-0.66/1.14 Shearer Shield Rubber Sheath Flexible Cable
Power Cord for shearer and similar equipments rated voltage 0.0.66/1.14kv
MCP-1.9/3.3 Shearer Shield Rubber Sheath Flexible Cable
Power Cord for shearer and similar equipments rated voltage 1.9/3.3kv

Shearer rubber sheath flexible cable specification:

Core NumberXConductor Section (mm2)
Thickness(mm)
Cable Outer Diameter reference weight(kg/km)
Power Core Ground Core Control Core Power core thickness Sheathed Thickness Min. Max.
3×16 1×4 2x2.5 1.6 4.5 31.4 35.1 1587
3×25 1×6 4x2.5 1.8 5.5 37.8 42 2499
3×35 1×6 4x4 1.8 5.5 41.8 45 3090
3×50 1×10 7x4 2 5.5 46 50.9 3900
3×35 1×4 3x6 2 6 47.2 51.4 3391
3×50 1×10 3x6 2.2 7 54.3 58.6 4440
3×70 1×16 3x6 2.2 7 59.6 64.3 5394
3×95 1×25 3x10 2.4 7 64.5 70.1 6775

Shearer rubber sheath flexible cable structure

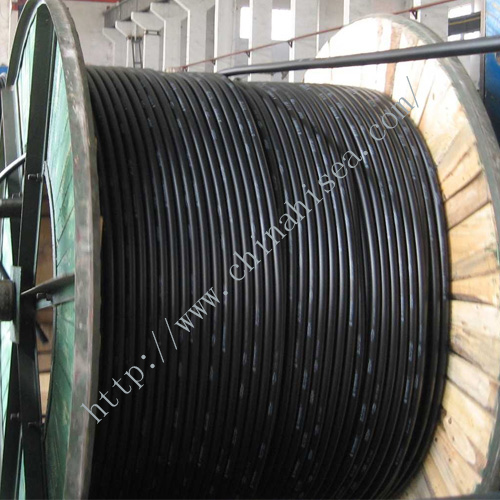

Cable in stock
