T Type L Type Three Way Ball Valve

T Type L Type Three Way Ball Valve:

1. Brief Introduction:

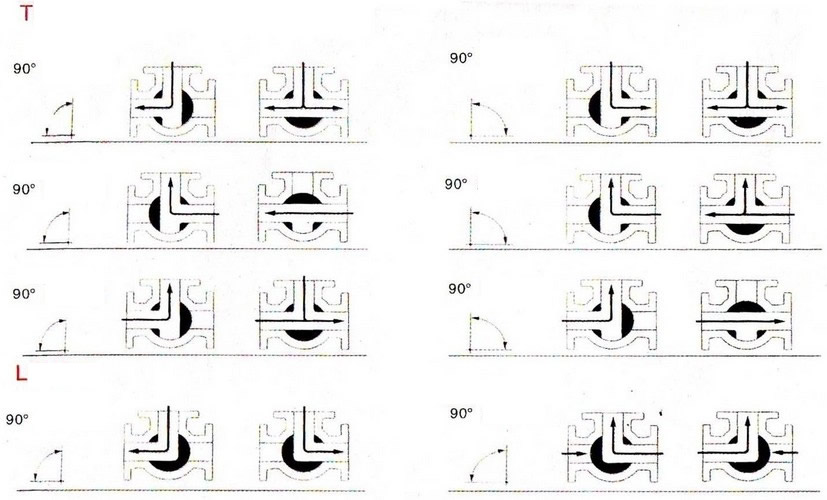

The three way ball valve has two structure types: T type and L type.

See the picture

2. Standard:

Design & Manufacture Standard: API 608, AIP 6D, BS 5351, ASME B16.34
Face to Face Standard: As Per Manufacturer's Standard
End Connection Standard: ASME B16.5, DIN 2543~2546
Test Standard: ISO5208, API 6D, BS 6755

3. Specification:

Nominal Diameter	1/2"~56"
Nominal Pressure	Class150~2500LB
Material	ASTM A216 WCB . ASTM 351 CF8
Operation	Lever, Gear, Pneumatic, Electric
Types	T Type, L Type

4. The picture of T Type L Type Three Way Ball Valve Electric Operation:
