Water Treatment Valve:

1. Brief Introduction:

It is swing start check valve. The purpose is to prevent the water from flowing backward.

2. Main Material:

Valve Body, Bonnet: Grey Iron, Ductile Iron

Valve Disc: Grey Iron, Ductile Iron

Rod Pin, Axle Pin: Carbon Steel, Stainless Steel

3. Specification:

Model H44T-10, H44W-10, H44X-10
Nominal Pressure 1.0 Mpa
Nominal Diameter DN40-DN600 mm
Medium Water, Oil, Steam

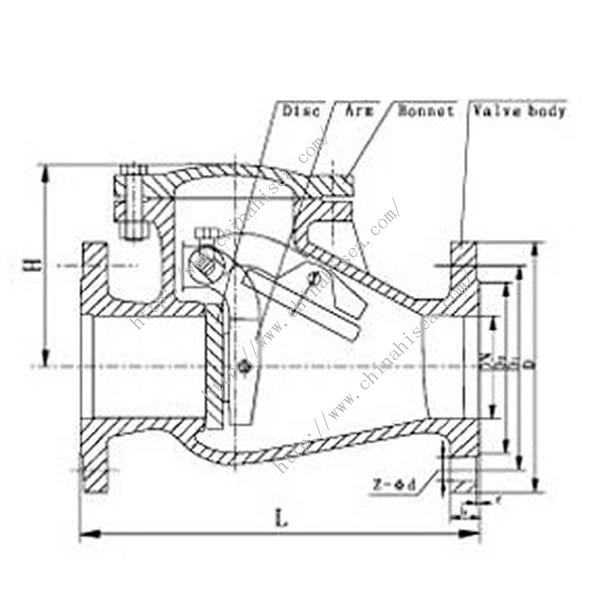

4. Water Treatment Valve Drawing Picture:

Water Treatment Valve Drawing

5. Water Treatment Valve Sample Picture:
