YTLS Marine Water Chiller

Application:

YTLS Navy water chiller module design make the installation convinient and flexible,developing the max efficiency,improving the reliability and accessible for maintanence,Single water chiller module may be combined together to provide a large system,which is easy to modify the type of for special service,Refrigenerant circuit of single water chiller module is totally enclosed and filled with R22 at factory and need no charge on site.Chilled or heated water piping and cooling sea water piping can be collected individually,improving the connection speed and is convinient for customer installation.

Each water chiller module includes hermetic scroll compressor,4-way reserve valve,double way expansion valve,High efficient coaxial condenser,stainless steel plate type heater exchanger,high&low pressure switch,water flow controller and water pan etc,Each assembly is assembled together compactly and make volume small.

Features:

Compact module design makes arrangement convinient.

AL alloy frame make weight light.

High efficient stainless steel plate type heater exchanger ensure the unit performance and reduce the volume.

All kinds of protection device make unit run safety.

Digital display controller is simple and convinients.

Electric box may be remote mounted,Its control and maintanence is more convinient.

One outdoor unit may incoorperate with multiple indoor units,which make installation more convinient and flexible.

Main technical parameters:

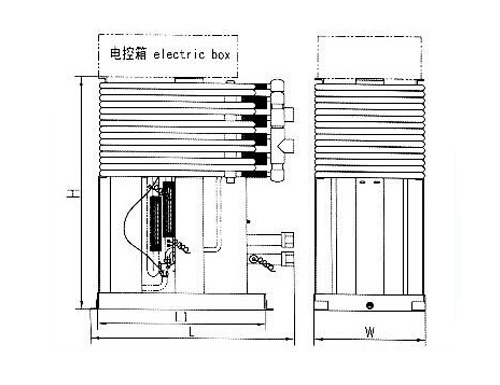

Type			YTLS- 24(I)	YTLS- 36(I)	YTLS- 48(I)	YTLS- 60(I)	YTLS- 72(I)	YTLS- 90(I)
制冷量 Cooling capacity		KW	7	10.5	14	17.5	21.1	26.3
制冷量 Cooling capacity		Btu/hr	24000	36000	48000	60000	72000	90000
制热量 Heating capacity		KW	7.72	11.55	15.4	19.3	23.2	28.9
制热量 Heating capacity		Btu/hr	26000	40000	52000	66000	79000	98000
制冷剂 Refrigerant			R22(R134a,R404A,R407C)
电制 Power Supply			AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz
总功率KW Total Power			1.5/2.2	2.2/3.2	3.0/4.2	3.7/5.4	5.0/7.0	5.6/7.9
电流A Current			3.5/5.0	5.0/7.0	6.6/8.9	7.4/11.2	10.5/14.2	11.8/16.8
冷热媒水量 Chilled/Heated water flow			1.2	1.8	2.4	3.0	3.6	4.5
冷热媒水进出口温度 Chilled/Heated water			制冷时(Cooling)12/7℃,制热水（Heating）40/45℃
冷却海水流量 Cooling water flow			1.78	2.64	3.58	4.5	5.35	6.5
冷却海水进口温度 Cooling water inlet temp			制冷时(Cooling) ≤32℃,制热水（Heating）≥8℃
外形尺寸 Dim	长度L mm		660	660	730	730	800	800
	长度L1 mm		610	610	610	610	610	610
	宽度W mm		305	305	305	305	405	405
	高度H mm		450	520	540	580	640	710
重量 Weight KG			85	95	100	110	135	165

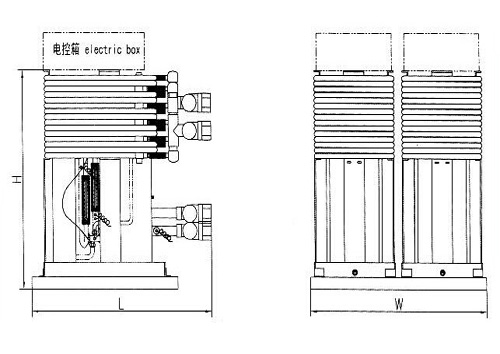

Type			YTLS- 120(I)	YTLS- 144(I)	YTLS- 96(II)	YTLS- 120(II)	YTLS- 144(II)	YTLS- 180(II)
制冷量 Cooling capacity		KW	35	42	28	35	42.2	52.6
制冷量 Cooling capacity		Btu/hr	120000	140000	96000	120000	144000	180000
制热量 Heating capacity		KW	38.5	46.2	30.8	38.5	46.4	57.8
制热量 Heating capacity		Btu/hr	130000	158000	104000	130000	158000	196000
制冷剂 Refrigerant			R22(R134a,R404A,R407C)
电制 Power Supply			AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz
总功率KW Total Power			7.3/10.3	9.5/13.3	6.0/8.4	7.4/10.8	10/14	11.2/15.8
电流A Current			15.1/20.2	19.6/27	13.2/17.6	15.2/21.2	21/28.4	23.4/32
冷热媒水量 Chilled/Heated water flow			6.0	7.4	4.8	6.0	7.2	9.0
冷热媒水进出口温度 Chilled/Heated water			制冷时(Cooling)12/7℃,制热水（Heating）40/45℃
冷却海水流量 Cooling water flow			9.0	11.0	7.16	9.0	10.7	13.0
冷却海水进口温度 Cooling water inlet temp			制冷时(Cooling) ≤32℃,制热水（Heating）≥8℃
外形尺寸 Dim	长度L mm		800	800	860	860	960	960
	宽度W mm		405	405	700	700	900	900
	高度H mm		840	880	590	630	700	760
重量 Weight KG			180	220	215	235	290	350

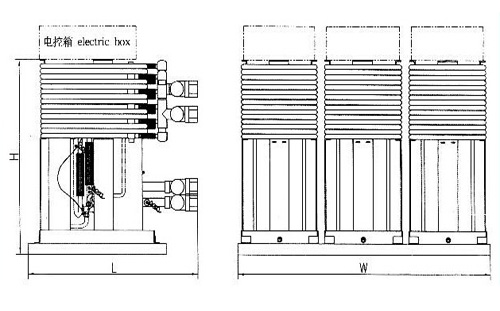

Type			YTLS- 240(II)	YTLS- 288(II)	YTLS- 144(III)	YTLS- 180(III)	YTLS- 360(III)	YTLS- 432(III)
制冷量 Cooling capacity		KW	70	84	42	52.5	105	126
制冷量 Cooling capacity		Btu/hr	240000	288000	144000	180000	360000	432000
制热量 Heating capacity		KW	77.2	92.4	46.4	57.9	115.8	138.6
制热量 Heating capacity		Btu/hr	260000	316000	156000	198000	390000	474000
制冷剂 Refrigerant			R22(R134a,R404A,R407C)
电制 Power Supply			AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz
总功率KW Total Power			14.6/20.6	19/26.6	9.0/12.6	11.1/16.2	21.9/30.9	28.5/39.9
电流A Current			28.9/41	39.2/54	19/26	23.2/32.8	43.8/59	43.8/59
冷热媒水量 Chilled/Heated water flow			12	14.8	7.2	9.0	18	22
冷热媒水进出口温度 Chilled/Heated water			制冷时(Cooling)12/7℃,制热水（Heating）40/45℃
冷却海水流量 Cooling water flow			18.0	22.0	10.75	13.5	27	33
冷却海水进口温度 Cooling water inlet temp			制冷时(Cooling) ≤32℃,制热水（Heating）≥8℃
外形尺寸 Dim	长度L mm		1000	1000	900	900	1000	1000
	宽度W mm		900	900	1020	1020	1400	1400
	高度H mm		900	940	600	640	900	940
重量 Weight KG			385	470	320	340	585	710

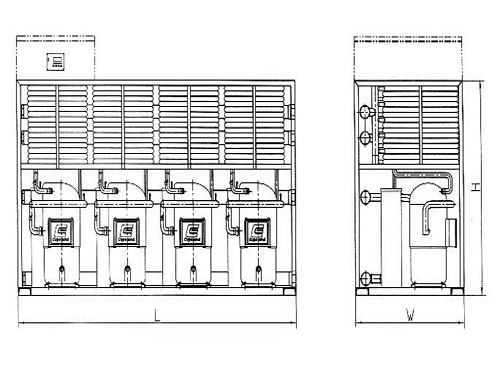

Type			YTLS- 192(IV)	YTLS- 240(IV)	YTLS- 288(IV)	YTLS- 360(IV)	YTLS- 480(IV)	YTLS- 576(IV)
制冷量 Cooling capacity		KW	56	70	84	105.2	140	168
制冷量 Cooling capacity		Btu/hr	192000	240000	288000	360000	480000	576000
制热量 Heating capacity		KW	61.9	77.2	92.5	115.6	154.4	184.8
制热量 Heating capacity		Btu/hr	208000	260000	316000	392000	520000	632000
制冷剂 Refrigerant			R22(R134a,R404A,R407C)
电制 Power Supply			AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz
总功率KW Total Power			12/16.8	14.8/21.6	20/28	22.4/31.6	29.2/41.2	38/53.2
电流A Current			24.8/33	29/43	40.4/55	44.9/60.5	57.8/80.6	78.4/108
冷热媒水量 Chilled/Heated water flow			9.6	12	14.4	18	24	29.5
冷热媒水进出口温度 Chilled/Heated water			制冷时(Cooling)12/7℃,制热水（Heating）40/45℃
冷却海水流量 Cooling water flow			14.4	18.0	21.4	26	36	44
冷却海水进口温度 Cooling water inlet temp			制冷时(Cooling) ≤32℃,制热水（Heating）≥8℃
外形尺寸 Dim	长度L mm		1400	1400	1800	1800	1800	1800
	宽度W mm		730	730	850	850	850	850
	高度H mm		820	820	880	880	980	1020
重量 Weight KG			450	470	560	710	780	940

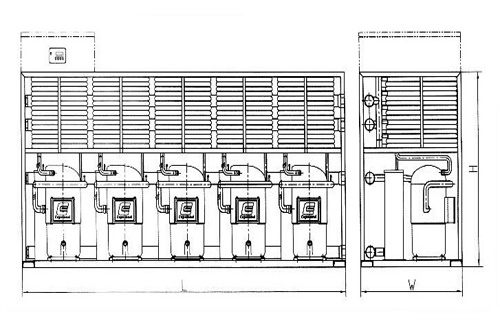

Type			YTLS- 300(IV)	YTLS- 360(IV)	YTLS- 600(IV)	YTLS- 720(IV)	YTLS- 720(IV)	YTLS- 864(IV)
制冷量 Cooling capacity		KW	87.5	105	175	210	210	252
制冷量 Cooling capacity		Btu/hr	300000	360000	600000	720000	720000	864000
制热量 Heating capacity		KW	96.5	115.7	192.5	231	231	277.2
制热量 Heating capacity		Btu/hr	330000	395000	650000	790000	790000	948000
制冷剂 Refrigerant			R22(R134a,R404A,R407C)
电制 Power Supply			AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz
总功率KW Total Power			18.5/27	25/35	36.5/51.5	47.5/66.5	43.8/61.8	57/79.8
电流A Current			36.5/53.8	49.2/69	71.8/99.8	93.2/120.2	90.6/111.2	117.6/142
冷热媒水量 Chilled/Heated water flow			15	18	30	36	36	44.5
冷热媒水进出口温度 Chilled/Heated water			制冷时(Cooling)12/7℃,制热水（Heating）40/45℃
冷却海水流量 Cooling water flow			22.5	26.7	45	55	55	66
冷却海水进口温度 Cooling water inlet temp			制冷时(Cooling) ≤32℃,制热水（Heating）≥8℃
外形尺寸 Dim	长度L mm		1750	2200	2200	2250	2700	2700
	宽度W mm		780	780	880	880	950	950
	高度H mm		820	820	980	1050	1050	1050
重量 Weight KG			580	750	1010	1230	1450	1550

型号Type		XKH-5-I	XKH-5-II	XKH-5-III	XKH-5-IV	XKH-5-V	XKH-5-VI
电制 Power Supply		AC380V 3Φ 50Hz/ AC440V 3Φ 60Hz
外形尺寸 Dim	长度L mm	500	500	640	720	780	840
	宽度W mm	200	200	200	200	200	200
	高度H mm	610	610	610	610	610	610
安装尺寸 Installation Dim	长度L1 mm	440	440	580	660	720	720
	宽度W1 mm	670	670	670	670	670	670
	高度H1 mm	730	730	730	730	730	730
重量 Weight Kg		25	25	32	38	44	50
