Pneumatic Angle Type Regulating Valve:

1. Product Introduction:

(1). Model: ZJHS

(2). Nominal Diameter: DN25-DN200 (mm)

(3). Fluid Way: One Way

(4). Sealing: Soft Seal

(5). Media: Oil, Oxygen

(6). Material: Carbon Steel

(7). Pressure: Nomal Pressure

(8). Working Temperature: Nominal Temperature

(9). Connection Type: Flange

(10). Valve Type: Straight-through Type

(11). Nominal Pressure: PN16, PN40, PN64

2. Main Material List:

Name Pneumatic Angle Type Regulating Valve
Valve Body, Valve Bonnet HT200、ZG230~450、ZG1Cr18Ni9Ti
Valve Plug, Valve Seat 1Cr18Ni9Ti, Titanium Alloy Welding
Soft Sealing Strengthen Polyter
Packing Teflon, Flexible Graphite, Stainless Steel Bellows
Gasket Rubber Asbestos Plate, 1Cr18Ni9Ti, Graphite Spirotallic Gasket
Valve Cover A3
Diaphragm Nitrile Butadiene Rubber With Enhance Polyester Fabric
Spring 60Si2Mn2Cr13
Valve Stem, Push Rod 1Cr18Ni9Ti
Bushing 2Cr13

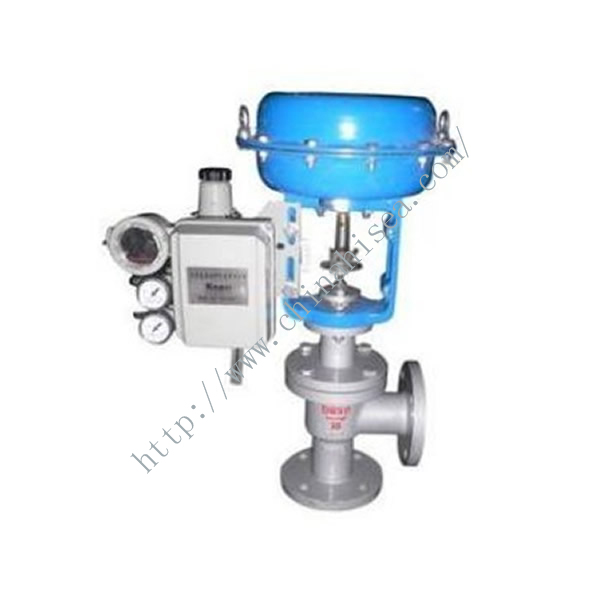

3. Pneumatic Angle Type Regulating Valve Sample Picture:

Pneumatic Angle Type Regulating Valve Sample

4. Pneumatic Angle Type Regulating Valve In Factory Picture:

Pneumatic Angle Type Regulating Valve In Factory
