Quadruple Quick Release Hook:


1.Product description:

operating force by handle: <150N

pull of hook body for one unit: 350-2500KN

quantity of hook body for one handle: 1hook

swing angle of hook body in vertical: 450

swing angle of hook body in horizontal: 45~900

puling speed of electric capstan: 18~25m/min

pull of electric capstan: 10KN~30KN

working diameter of capstan:250mm

Matriel:hook body:quality alloy.
Quick release hook will be entirely sprayed with zinc and the thickness.

2.Mainfeatures:

Quick operate cable-laying ,bond cable, release cable easily.

Self locking mechanism make sure bond cable ,manual. electric or hydraulic release control lever.

Full load or zero load the anchor can quick release.

Elasticity cushion rubber let it no spark.

Vertical Type

Feature:1. Iner brake explosion protection electric motor, safe brake performance, use vertical footing fix installation .

Reduction gearbox: helical gearbox, planetary gearbox, spindle wheel swinging gearbox

Horizontal type

Feature:1.Normal explosion protection electric motor, footing fix installation .

3.Specification:

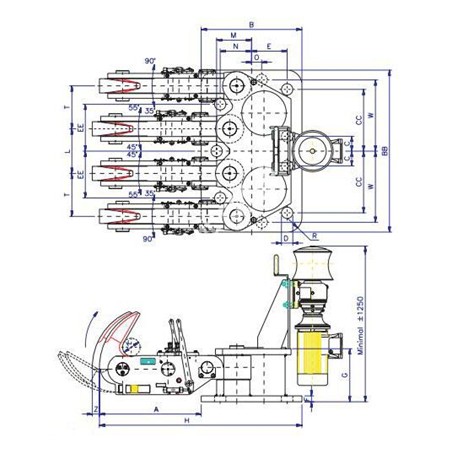

Quadruple release towing hook.jpg

S.W.L

Cap.

Wt.

A

B

BB

C

D

E

EE

F

G

H

K

L

M

O

R

X

400

1200

707

598

700

800

310

62

260

145

35

370

1296

96

290

275

90

6*M56

600

1800

1268

863

800

900

335

70

310

162

45

407

1663

130

325

310

65

100

6*M64

750

2250

1540

893

850

1000

375

78

325

175

45

417

1743

130

350

325

60

100

6*M72

1000

3000

2144

959

900

1060

400

78

350

190

50

417

1859

150

380

322

55

100

6*M72

1250

3750

2450

1030

900

1060

400

86

350

190

55

479

1930

150

380

322

55

100

7*M80

1500

4500

3586

1235

1020

1200

475

96

385

212

55

499

2255

150

425

385

115

125

7*M90

4. Certificates: ABS, BV, GL, CCS, RINA, DNV, KR, NK, LR are availabe at request.
