BFOU(i) S3 halogen free offshore communication cable

BFOU(i) S3 halogen free offshore communication cable

BFOU(i) S3 flame retardant offshore communication cable

BFOU(i) S3 flame retardant offshore communication cable application

The cables are flame retardant , halogen free and, suitable for instrumentation, communication, control and alarm systems,exclude for mud conditions.

BFOU(i) S3 flame retardant offshore communication cable Standards

IEC 60092-376
IEC 60092-351
IEC 60092-359
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2004

BFOU(i) S3 Halogen free flame retardant mud resistant offshore power cable Main Parameter

Maximum conductor temperature:+90℃

Rated Voltage:250v

Tested Voltage:1.5kv/5min

Flame spread test on bunched cable:Category A

Smoke density of finished cable:≥60%

Bending radius : 8 × OD ( installing ); 6 × OD ( fixed installation )

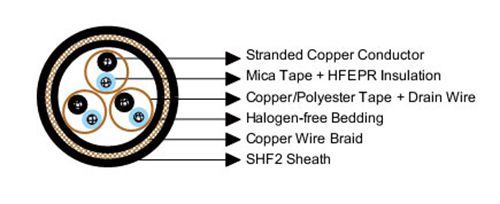

BFOU(i) S3 flame retardant offshore communication cable construction


1.Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2.
2.Insulation: Halogen free EPR compound.
3.Twinning: Colour coded cores twisted together.
4.Individual Shielding: Each pairs/triples are screened by copper backed polyester
5.tape in contact with a stranded tinned copper drain wire and wrapped with polyester
6.tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
7.Bedding: Halogen free compound.
8.Armour: Tinned copper wire braid.
9.Outer Sheath: Halogen free thermosetting compound, SHF2 (for TYPE S3). Halogen free MUD resistant thermosetting compound, SHF MUD (for TYPE S3/S7), coloured grey (blue for intrinsically safe).

BFOU(i) S3 flame retardant offshore communication cable electrical characteristics

Nominal Cross Section Area mm2 0.75 1.0 1.5 2.5
Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
Max.Resistance @20℃ Ω/km 26.3 19.3 12.9 8.02
Mutual Capacitance nF/km 85 90 100 110
Nominal Inductance@1KHz MH/km 0.731 0.691 0.673 0.629
Max. L/R@1KHz μH/Ω 20 25 35 55
Working Voltage V 250 250 250 250

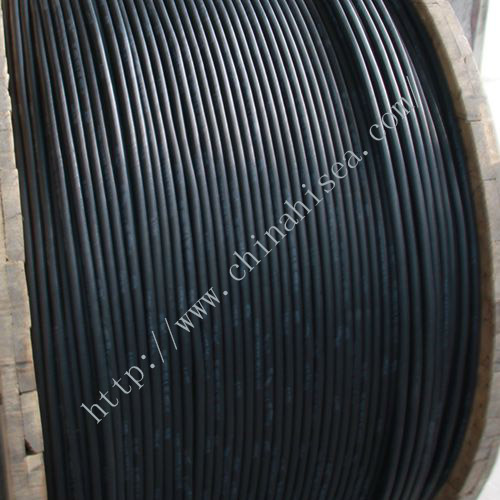

BFOU(i) S3 flame retardant offshore communication cable Show

BFOU i S3 finished cable.jpg
