Grade 100 Eye Type Self Locking Hook

Grade 100 Eye Type Self Locking Hook

Name: Grade 100 Eye Type Self Locking Hook

Application: used with Grade 100 chains and fittings and on wire/fiber rope slings

Standard: meet BS-EN 1677-3, ASTM A952

Material and Process: alloy steel, quenched and tempered

Finish: painted. Galvanized surface types are available at the same time. Marked with manufacturer identification and material grade

Spare locking system trigger kits available

Technical Specification of this Grade 100 Eye Type Self Locking Hook



Product Model

Chain Diameter

(mm)

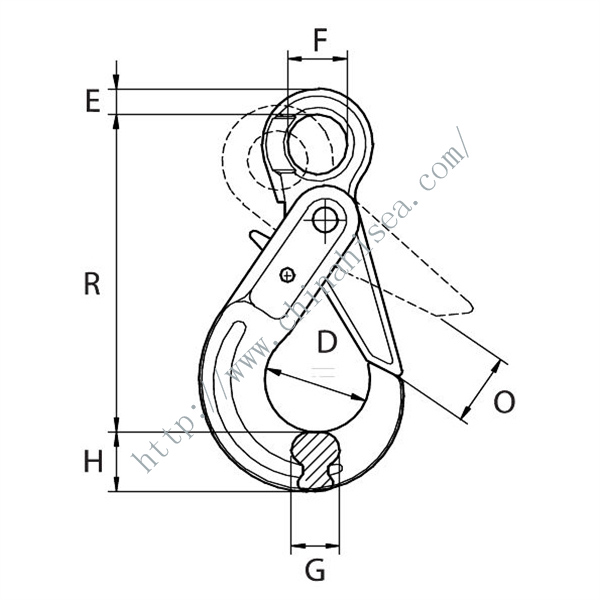

Dimension (mm)

Working Load Limit

Rated Test Force

Breaking Force

Weight

D

E

F

H

G

O

R

tones

KN

KN/min

kgs/pc

G10ESL-35

6

35.0

13

35

20.5

16.0

28.0

160

1.4

-

-

0.6

G10ESL-43

7/8

43.5

13

35

26.0

20.0

34.0

181

2

-

-

1.1

G10ESL-56

10

56.0

16

42

30.0

24.5

45.0

218

3.15

-

-

2.0

G10ESL-69

13

69.0

20

49

40.0

34.5

51.5

269

5.3

-

-

4.0

G10ESL-80

16

80.0

24

60

50.0

35.5

60.0

319

8

-

-

6.8
