IEEE 1580 type P 1kv Signal Cable application

Type P Marine and Offshore Cable is primarily designed for power, control, signal and instrumentation applications for offshore, land rigs, marine vessels and oil and gas drilling rigs.
IEEE 1580 type P 1kv Signal Cable is suitable for use in commercial marine applications, MODU's & Platforms, onshore and offshore drilling platforms, FPSO, etc.
Power circuit up to 1kV, Lighting circuits, Trace heating circuits- Fixed installation power & lighting in both explosion risk and safe areas, general purposes, emergency & critical systems- Designed and constructed for demanding environments and petroleumfacilities located throughout the world.

IEEE 1580 type P 1kv Signal Cable model

0.6/1kV TP(I/S-OS)14PN, 0.6/1kV TP(I/S-OS)14PNBS
0.6/1kV TP(I/S-OS)16PN, 0.6/1kV TP(I/S-OS)16PNBS
0.6/1kV TP(I/S-OS)18PN, 0.6/1kV TP(I/S-OS)18PNBS
0.6/1kV TP(I/S-OS)20PN, 0.6/1kV TP(I/S-OS)20PNBS
0.6/1kV TT(I/S-OS)16PN, 0.6/1kV TT(I/S-OS)16PNBS
0.6/1kV TT(I/S-OS)18PN, 0.6/1kV TT(I/S-OS)18PNBS
0.6/1kV TT(I/S-OS)20PN, 0.6/1kV TT(I/S-OS)20PNBS

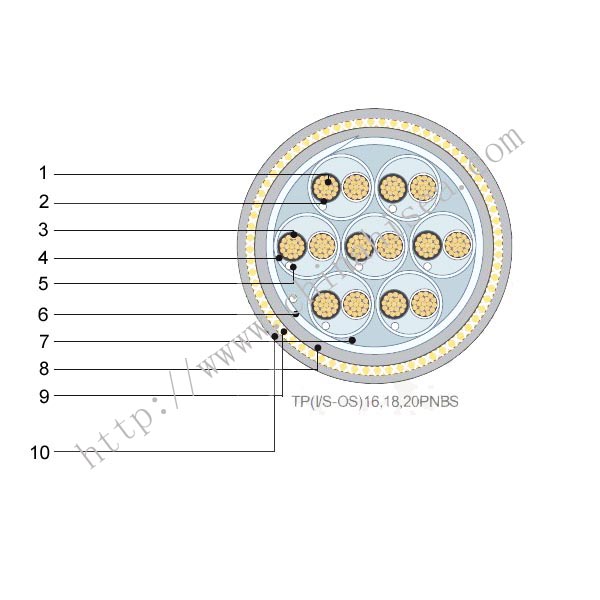

IEEE 1580 type P 1kv Signal Cable construction

1. CONDUCTOR : TINNED ANNEALED ROPE-LAY STRANDED COPPER
2. SEPARATOR TAPE (if necessary)
3. INSULATION(TYPE P ACCORDING TO IEEE 1580)
4. BINDER TAPE
5. DRAIN WIRE
6. SHIELDING : ALUMINUM POLYSTER TAPE
7. FILLER
8. JACKET : ARCTIC NEOPRENE
9. ARMOR : BRONZE WIRE BRAID
*Suitable tape may be applied over/under braid armor
10. JACKET : ARCTIC NEOPRENE

IEEE 1580 type P 1kv Signal Cable standards

IEEE 1580(2001)
IEEE 45(2002)
UL 1309 / CSA C 22.2 No.245(1995)
100℃ (IEEE 1580 TYPE P)
110℃ UL1309/CSA C22.2 No. 245 Type X 110
FLEXEN 125 (UL 758 125)

IEEE 1580 type P 1kv Signal Cable features

1.Superior resistance to oil, abrasion, moisture, sunlight, mud, crush and impact
2.Super-flexible at 4/0 AWG and larger
3.Meets IEEE standards for 1kV
4.Excellent resistance to oil, abrasion, petrochemical fluids, moisture & sunlight.
5.Type LSX, LSE, TOP, & L(Low Smoke Halogen Free) available
6.Superior flexibility

IEEE 1580 type P 1kv Signal Cable specification

Flame retardant	IEC 60332-3-22 CAT.A / IEEE 1202
Cold resistant	CSA C 22.2 No.38(cold bend @ -40℃ and cold impact @ -35℃ )
Drilling Mud Resistant (Water & oil based Mud)	NEK 606(2004)
Crush & Impact resistant	UL 1277 & UL 2225

IEEE 1580 type P 1kv Signal Cable shows

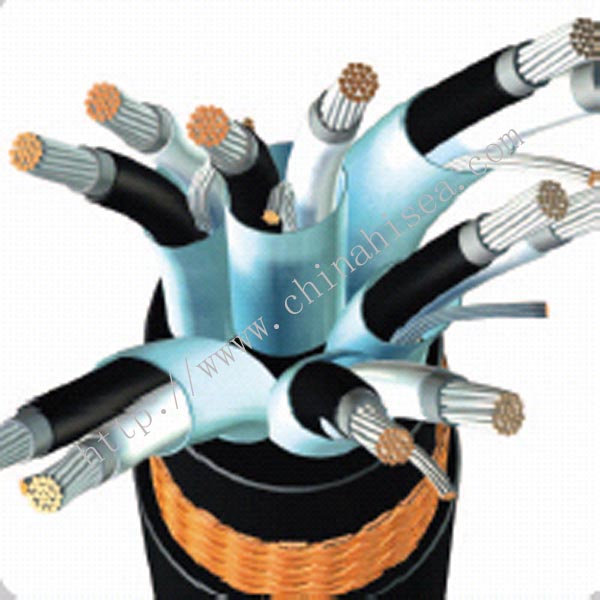

IEEE 1580 type P 1kv Signal Cable sample1

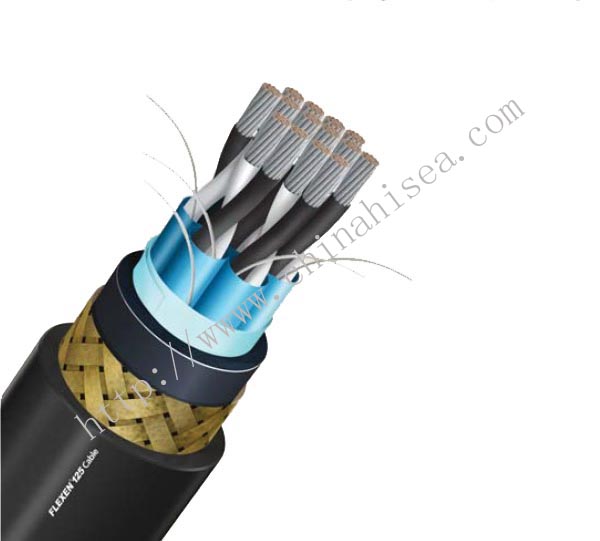

IEEE 1580 type P 1kv Signal Cable sample2

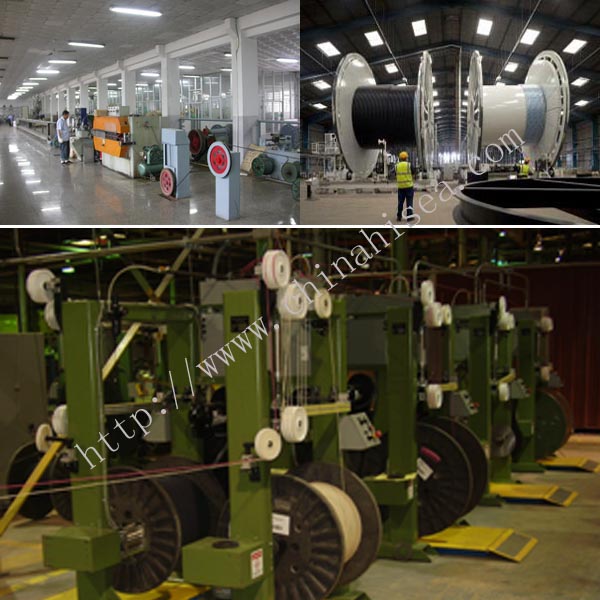

IEEE 1580 type P 1kv Signal Cable workshop

IEEE 1580 type P 1kv Signal Cable processing
