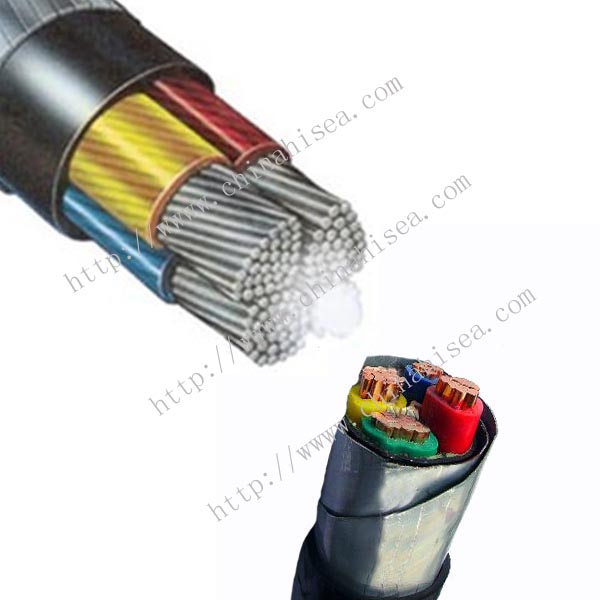

1KV BS 6883 Armored Power & Control Cable

1KV BS 6883 Armored Power & Control Cable application

Eelastomeric insulated cables are designed for fixed wiring in ships and on mobile offshore units, suitable for use in power and control applications.

This 1KV BS 6883 Armored Power & Control Cable is for fixed wiring in ships, and in mobile and fixed offshore units (e.g. drilling rigs, oil platforms, etc.). For use in regularly occupied areas such as accommodation facilities, control rooms and computer suites. Any application where life may be endangered by smoke and noxious fumes, and where vital, sensitive equipment may be damaged by acid forming gases.

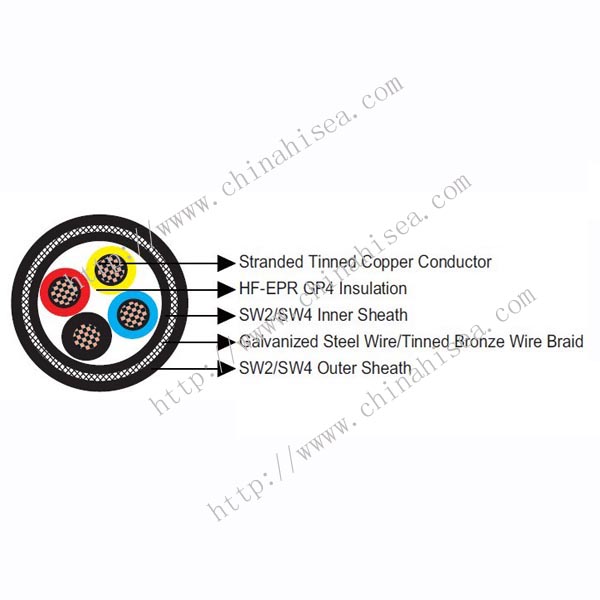

1KV BS 6883 Armored Power & Control Cable construction

1. Conductor: Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228.
2. Insulation: HF-EPR GP4 according to BS 7655 1.2.
3. Inner Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.
4. Armour: Galvanized steel wire braid or tinned bronze wire braid (single core). Copper wire braid can be offered upon request.
5. Outer Sheath: Halogen free thermosetting compound SW4 according to BS 7655 2.6 or reduced halogen thermosetting compound SW2 according to BS 7655 2.6.

1KV BS 6883 Armored Power & Control Cable standards

BS 6883
IEC 60332-3A Flameretardant
IEC 60754-1; IEC 60754-2 Corrosivity
IEC 61034-2 Smoke density
Cold bend and impact (-40°C) (on request)
CSA C22.2 No. 38-95 (on request)

1KV BS 6883 Armored Power & Control Cable features

1. Meets BS 6883 standards for 1KV
2. Armored
3. Flame retardant
4. HF-EPR GP4 insulated
5. Tinned copper wire

1KV BS 6883 Armored Power & Control Cable specification

Flame retardant	IEC 60332-3A
Conductor	Tinned copper wire stranded circular cl. 2 BS 6360/IEC 60228
Insulation	HF-EPR GP4 according to BS 7655 1.2
Minimum Internal Bending Radius	6×OD (OD>25mm); 4×OD (OD ≤25mm)
Temperature Range	-40℃~90℃
