Marine Wire

Marine Wire

Marine Wire

Marine Wire application

The wire is intended for connection between electrical and switch board or switch of ships.

Marine Wire Standards

IEC 60092-350
IEC 60092-353
IEC 60332-1-2
IEC 60754-1/2
IEC 61034

Marine Wire Service Condition

1.Rated Voltage:0.6/1(1.2)kV

2.Long time allowable working temperature:CBVR 70℃ CBPJR 90℃

Marine Wire Model

Model Name
CBV PVC insulated Marine Wire
CBVR PVC insulated Marine Flexible Wire
CBPJ SHF2 insulated Marine Wire
CBPJR SHF2 insulated Marine flexible wire

Marine Wire Specification

Size CBVR CBPJR
Diameter

Reference Weight

kg/km

Diameter Reference Weight
Min. Max. Min. Max.
1x1 2.8 3.6 18 2.6 3.4 16
1X1.5 3.0 4.0 22 2.8 3.8 20
1X2.5 3.4 4.4 35 3.2 4.2 30
1X4 4.4 5.4 60 3.8 4.8 50
1X6 5.4 6.6 80 4.8 6.0 70
1X10 6.6 7.8 120 6.0 7.2 110
1X16 7.6 8.8 180 7.0 8.2 170
1X25 9.8 11.5 280 9.2 10.5 270
1X35 11.2 13.0 380 10.6 12.5 360
1X50 13.0 15.0 530 12.2 14.0 510
1X70 14.8 17.0 720 14.2 16.0 710
1X95 17.6 20.0 980 16.6 18.5 950
1X120 19.2 21.5 1220 18.4 21.0 1190

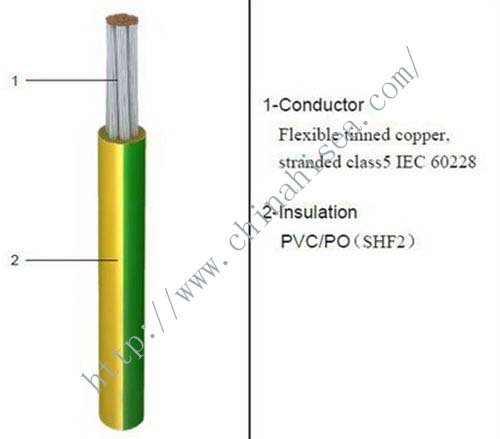

Marine Wire Structure

marine wire structure.jpg

Marine Wire Show

marine cable show.jpg

If you need any more detail information,drop a message below.We will get to you ASAP.
