Marine Male Thread Bronze Screw Down Non-Return Valve GB596-83

Marine Male Thread Bronze Screw Down Non-Return Valve GB596-83

Marine Male Thread Bronze Screw Down Non-Return Valve GB596-83

1. Also named marine male thread bronze screw down check globe valve A and B type, straight SDNR valve, angle SDNR valve.

2. Suitable medium: fresh water, sea water, lube oil, fuel oil, air and steam(≤400℃)

3. Materials:

(1). Body: ZCuA19Mn2

(2). Bonnet, disc and stem: QA19-2

4. Drawing for A type:

drawing for A type.jpg

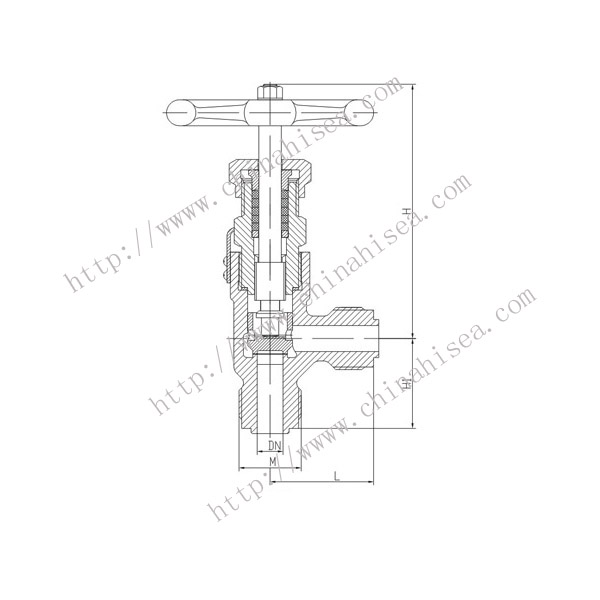

5. Drawing for B type:

drawing for B type.jpg

6. Product picture:

product picutre.jpg

7. Size:

MPa DN THREAD HEIGHT STRUCTURE LENGHT
H1 H L
M A TYPE B TYPE A TYPE B TYPE
4.0 10 M27x1.5 20 41 128 94 47
15 M36x2 25 52 143 110 55
20 M39x2 32 55 154 116 58
25 M48x2 38 64 167 130 65
32 M56x2 46 72 198 140 70

TYPE NAME MPa DN(mm)
A Straight SDNR Valve 4.0 10-32
B Angle SDNR Valve

8. Certificate:

CCS, BV, ABS, GL, LR, KR, IRS, RINA, NK, DNV.
