Oil/Gas Workover Rig

Oil/Gas Workover Rig

Oil/Gas Workover Rig

Features of Oil/Gas Workover Rig:
  • Various rigs for workover operations of different drilling depth;
  • Power system utilizes international famous engines and hydraulic transmission box;
  • Mast design & fabrication conforms to API Spec 4F, passing finite-element analysis and stress test;
  • The main drum is Lebus grooved;
  • The main brake utilizes band brake or hydraulic disc brake, and the auxiliary brake utilizes pneumatic water-cooling disc brake, pneumatic clamp brake, water brake, electromagnetism eddy brake, etc. ;
  • The bailing drum can be equipped optionally;
  • Chassis driven via power take-off box from truck engine, adopting excellent off-road heavy-duty wide axle, low section tire, high strength beams, hydraulic steering gear, dual brake system;
  • Adapted to complicated oilfield condition with longer service life;
  • Subject to professional testing devices to ensure safety and reliability;
  • Able to operate under the temperature ranging from -35℃ to +50℃, conforming to HSE regulations;

Specifications of Oil/Gas Workover Rig:

Type

XJ350

XJ600

XJ700

XJ900

XJ1100

XJ1350

XJ1600

XJ1800

XJ2250

Nominal Depth ( m)

Service Depth

2 7/8External Upset Tubing

1600

2600

3200

4000

5500

7000

8500

-

-

Workover Dpeth

2 7/8” DP

-

-

2000

3200

4500

5800

7000

8000

9000

3 1/2” DP

-

-

-

2500

3500

4500

5500

6500

7500

4 1/2” DP

-

-

-

-

-

3600

4200

5000

6000

Max. Hook Load (kN)

350

600

700

900

1100

1350

1600

1800

2250

Rated Hook Load (kN)

200

300

400

600

800

1000

1200

1500

1800

Installed Power (HP)

-

250

290

385

540

540

630

540×2

630×2

Max. Strung of Hoisting System

3×4

4×5

5×6

Wireline Dia. (mm)

22

26

29

29/32

Travelling System Model

YG40

YG70

YG90

YG110

YG135

YG160

YG225

Drawworks Rated Power (kW)

150

180

220

250

300

350

410

550

735

Drawworks Shift

5F

Main Brake Type

Band Brake

Band/Disc Brake

Disc Brake

Mast Working Height (m)

18/21

29/31

31/33/35

36/38

38/39

Chassis Parameter

Driving Type

Type II Chassis

6×6

6×6

8×8

10×8

10×8

12×8

14×8

14×10

Max. Speed Limit (km/h)

60

45

Min. Ground Clearance (mm)

340

310

Max. Gradeability

20%

Cab Type

Integral Type

Block-style, single-door, single offset seat

Pictures of Oil/Gas Workover Rig:

Workover Rig.jpg

Oil/Gas Workover Rig

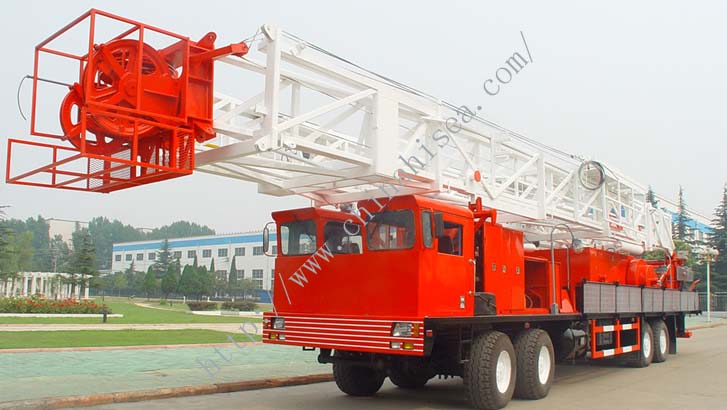

Workover Rig - in Factory.jpg

Oil/Gas Workover Rig - in Factory

Workover Rig - on Site.jpg

Oil/Gas Workover Rig - on Site

Workover Rig - Operating.jpg

Oil/Gas Workover Rig - Operating
