Type DF and DY Weathertight Steel Door

Marine Steel Single Weathertight Door GB/T3477-1996 is used the doorway of upper structure above freeboard deck or deck house, meet the standard of ISO6042-1980.There are four types A,B,C,D,and can be with round corner or square corner. CCS, BV, ABS, DNV, LR, GL, NK certificates are available.

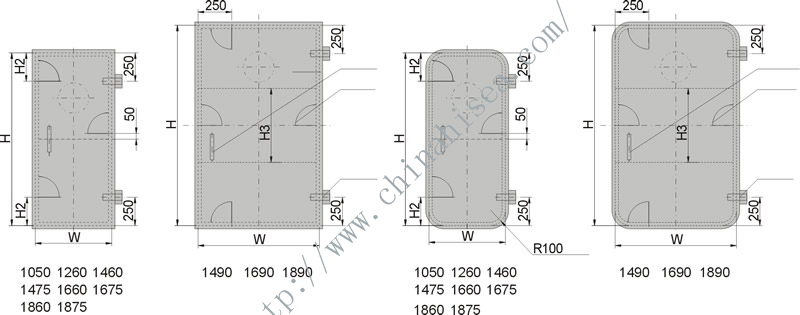

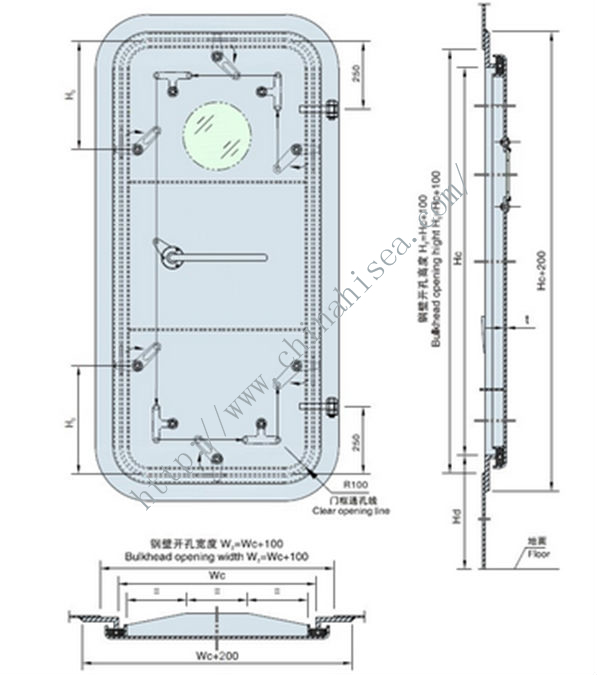

General Drawing:

weathertight door.jpg

Technical Specification:

Type	Code of Standard	Size of Doorway	Size of Door	Opening Size of Wall		Thickness of Door	Reinforced Muscle
Type	Code of Standard	(H*W)	(H1*W1)	DF	DY	Thickness of Door	W*T	H3
DF DY	1050	1000*500	1055*555	1100*600 R80	1100*600 R150	4	50*5	-
	1260	1200*600	1255*655	1300*700 R80	1300*700 R150	4	50*5	-
	1460	1400*600	1455*655	1500*700 R80	1500*700 R150	4	50*5	-
	1475	1400*750	1455*805	1500*850 R80	1500*850 R150	4	50*5	-
	1490	1400*900	1455*955	1500*1000 R80	1500*1000 R150	4	50*5	600
	1660	1600*600	1655*655	1700*700 R80	1700*700 R150	6	65*6	-
	1675	1600*750	1655*805	1700*850 R80	1700*850 R150	6	65*6	-
	1690	1600*900	1655*955	1700*1000 R80	1700*1000 R150	6	65*6	600
	1860	1800*600	1855*655	1900*700 R80	1900*700 R150	6	65*6	-
	1875	1800*750	1855*805	1900*850 R80	1900*850 R150	6	65*6	-
	1890	1800*900	1855*955	1900*1000 R80	1900*1000 R150	6	65*6	600
