DHK Type High Speed Electric Chain Hoist

DHK Type High Speed Electric Chain Hoist

DHK Type High Speed Electric Chain Hoist

Product Name: DHK Type High Speed Electric Chain Hoist
Material: Steel
Spec: DHK is a Chinese-made electric hoist, according to the German technological innovation of new products, Structure changed significantly, it has applied for natent. high lifting speed, running smoothly, small size, light weight, beautiful apperance. Applied to the factory, mine, pier, supermarket, warehouse. It could work with cargo trolley, improve working conditions, improve labor efficiency.

Parameters For DHK Type High Speed Electric Chain Hoist:

Model Capacity(t) Testing Load(t) Power Supply Moter Power(kw) Lifting Speed(m/min) Min distance btw hooks(mm) Standard Lifting Heigt(m) Net Weight(kg) Extra weight meter of extra lift(kg)
DHK1 1 1.25 380V/415V

50Hz
0.4 3 300 3 42 0.82
DHK2 2 2.5 0.8 3 380 3 50 1.7
DHK3 3 3.75 1.1 2 470 3 55 2.9
DHK5 5 6.25 1.1 2 600 3 62 4.42
DHK10 10 12.5 1.1 1.5 730 3 10 8.84

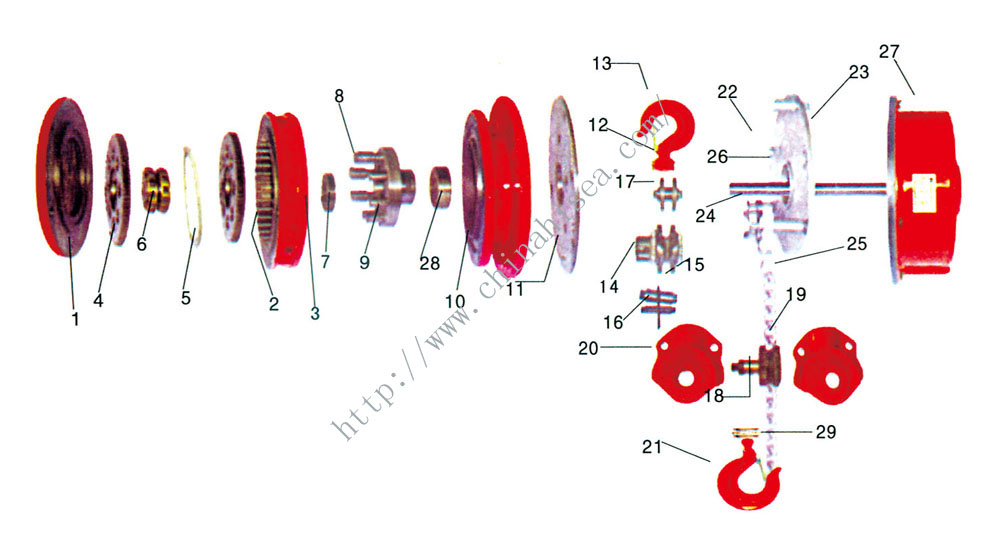

Construction Photo For DHK Type High Speed Electric Chain Hoist:

DHK Type High Speed Electric Chain Hoist-construction drawing.jpg
