CD1.MD1 Type Wire Rope Electric Hoist

Product Name:	CD1.MD1 Type Wire Rope Electric Hoist
Material：	Steel
Spec:	1. Reducer: Third-class dead axel helical gear transmission structure is adopted, gear and gear axel are made of heat treated alloy steel, case and case cover with precise assembly and good seal are made of quaility cast iron. The reducer is independant, it's easy to load unload it. 2. Control Box: It has device with up and down stroke protection of break off limiter and can cut offmain circuit in an emergency, which ensures safe operation of electric block. Electric element are of long service life and operational safety. 3. Steel wire rope: It uses GB1102-74(6*37+1) hoist steel wire rope shich is durabel in use. 4. Conical Motor: The hoist motor uses concial rotors of relatively stronger starting torque to brake asynchronous motor and dose not grade insulation and its grade of protection is IP44/IP55. 5.Button switch: It's hand-operated, easy to handle, and has two models of cord operation and cordless remote control.

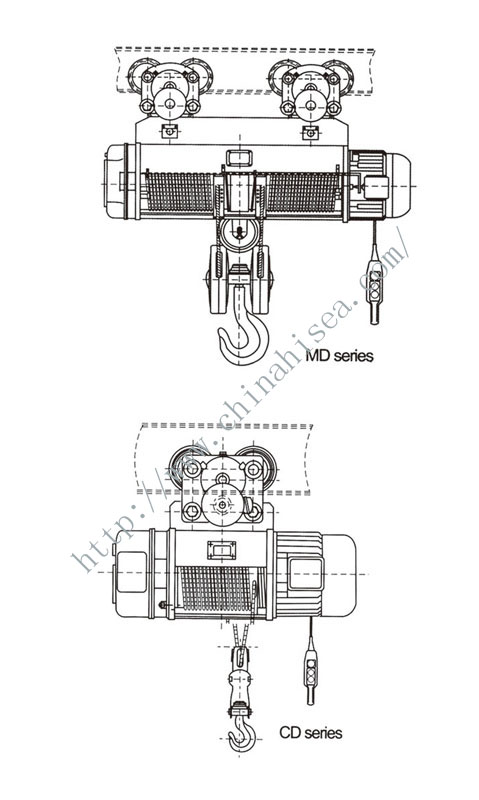

Technical Drawing For CD1.MD1 Type Wire Rope Electric Hoist:

Parameters For CD1.MD1 Type Wire Rope Electric Hoist:

Model	Capacity(t)	Norm Working Level	Hoisting Height(mm)	Hoisting speed(m/min)	Operating speed(suspended type) min	Multiplying power of chain wheel	Type and power of hoisting electric motor(kw)	Type and power of operating electric motor(suspended type)	Level of protection	Type of I-steel track	Minimum turning radius(m)	Net weigt(kg)	Power

CD1 MD1 (CD1 YDM1Y)		M3	6	8 8/0.8	20	2/1	ZD21-4 0.8 ZDS1 0.8/0.2 0.8/0.2	ZDY11-4 0.2	IP44 IP54	16a~28b	1.5	135	3-380V/50Hz
			9								1.5	140
			12								1.5	155
			18								1.8	175
			24								2.5	185
			30								3.2	195
	0.9	M3	6	8 8/0.8	20	2/1	ZD22-4 1.5 ZDS1 1.5/0.2 1.5/0.2	ZDY11-4 0.2	IP44 IP54	20a~28c	1.8	180
			9								1.8	190
			12								2	205
			18								2.3	220
			24								2.5	235
			30								3.2	255
	1	M3	6	8 8/0.8	20	2/1	ZD22-4 1.5 ZDS1 1.5/0.2 1.5/0.2	ZDY11-4 0.2	IP44 IP54	20a~28c	1.8	180
			9								1.8	190
			12								2	205
			18								2.3	220
			24								2.5	235
			30								3.2	255
	2	M3	6	8 8/0.8	20	2/1	ZD22-4 3 ZDS1 1.3/0.4 1.3/0.4	ZDY12-4 0.4	IP44 IP54	20a~28c	2.2	230
			9								2.2	240
			12								2.5	298
			18								2.8	320
			24								4	334
			30								4	356
	3	M3	6	8 8/0.8	20	2/1	ZD22-4 4.5 ZDS1 4.5/0.4 4.5/0.4	ZDY12-4 0.4	IP44 IP54	25a~45c	2.5	293
			9								2.5	310
			12								2.8	346
			18								2.8	400
			24								3	435
			30								4	496
	5	M3	6	8 8/0.8	20	2/1	ZD41-4 7.5 ZDS1 7.5/0.8 7.5/0.8	ZDY21-4 0.8	IP44 IP54	25a~63c	2.8	474
			9								2.8	495
			12								3	546
			18								3.2	622
			24								4	670
			30								5	800
	10	M3	9	7 7/0.7	20	4/2	ZD51-4 13 ZDS1 13/1.5 1.3/1.5	ZDY21-4 2*0.8	IP44 IP54	40a~63c	3	980
			12								3.5	1050
			18								4	1190
			24								5	1330
			30								6	1470
	16	M3	9	3.5 3.5/0.35	20	4/1	ZD51-4 13 ZDS1 13/1.5 1.3/1.5	ZDY21-4 2*0.8	IP44 IP54	45a~63c	4	1214
			12								6	1294
			18								7	1454
			24								8	1614
	20	M3	8	3.5 3.5/0.35	20	4/1	ZD51-4 13 ZDS1 13/1.5 1.3/1.5	ZDY21-4 2*0.8	IP44 IP54	50a~63c	4	1250
			10								6	1340
			15								7	1700
			20								8	1950
			24								9
