EPR insulated Marine power cable

EPR insulated Marine power cable

EPR insulated Marine power cable

EPR insulated Marine power cable application

Marine power cable is used for variety of ships and offshore oil platforms and other water buildings as power,lighting,normal control device.

EPR insulated Marine power cable standard

GB9331(IEC60092-356)

EPR insulated Marine power cable service condition

1.Rated Voltage:U0/U 0.6/1kV

2.flexible cables for mobile devices,the other cables are fixed laying

cable bending radius while laying is as below

Cable Structure Cable Outer Diameter Minimum Bending Radius
Metal Braided Armored
6D
Non Armored D≤25 4D
D>25 6D

3.Minimum cable laying ambient temperature : PVC sheath -15 ℃, others are -20 ℃;

4.Cables single vertical flame combustion characteristics (/ DA) type cable can withstand GB12666.2 (IEC60332-1) under a single vertical burning test;
Bunched retardant (/SA) cable can withstand GB12666.5 (IEC60332-3) prescribed burning test;
LSF bunched retardant (/ SB) cable can withstand GB12666.5 (IEC60332-3) prescribed burning test, and the burning smoke concentration shall meet GB12666.7 (IEC61034) provides that the combustion gases HCL precipitation content should be ≤ 100mg / g (meet IEC6754-1 requirements);
Bunched retardant LSZH (/ SC) cable can withstand GB12666.5 (IEC60332-3) prescribed burning test, and the burning smoke concentration shall meet GB12666.7 (IEC61034) provides that the combustion gases soluble precipitates PH value ≥ 4.3, conductivity ≤ 10μs/mm (meet IEC754-2 requirements);
5.the carrying capacity of the cable is assumed: a full four cables laid in 45 ℃ Humidity, the conductor temperature and the temperature allowed to continue at the calculated value.

EPR insulated Marine power cable Model

Model Description Standard

CEF/DA

EPR insulation PCP sheath Marine power cable,Type DA

IEC60092-350

IEC60092-353

IEC60332-1

IEC60332-3A

CEF80/DA EPR insulation PCP inner sheath tinned copper wire braided Marine power cable,Type DA
CEF90/DA EPR insulation PCP inner sheath galvanized steel wire braided Marine power cable,Type DA
CEF82/DA EPR insulation PCP inner sheath tinned copper wire braided PVC outer sheathed Marine power cable,Type DA
CEF92/DA EPR insulation PCP inner sheath galvanized steel wire braided PVC outer sheathed Marine power cable,Type DA
CEF/SA EPR insulation PCP inner sheath flame-retardant Marine power cable,Type SA
CEF80/SA EPR insulation PCP inner sheath tinned cooper wire braided flame-retardant Marine power cable,Type SA
CEF90/SA EPR insulation PCP inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CEF82/SA EPR insulation PCP inner sheath copper wire braided PVC outer sheathed flame-retardant Marine power cable,Type SA
CEF92/SA EPR insulation PCP inner sheath galvanized steel wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
Type Description

CEH/DA

EPR insulation CSP sheath Marine power cable,Type DA
CEH80/DA EPR insulation CSP inner sheath tinned copper wire braided Marine power cable Type DA
CEH90/DA EPR insulation CSP inner sheath galvanized steel wire braided Marine power cable,Type DA
CEH82/DA EPR insulation CSP inner sheath tinned copper wire braided PVC outer sheath Marine power cable,Type DA
CEH92/DA EPR insulation CSP inner sheath galvanized steel wire braided PVC outer sheath Marine power cable,Type DA
CEH/SA ERP insulation CSP sheath flame-retardant Marine power cable,Type SA
CEH80/SA ERP insulation CSP inner sheath tinned copped wire braided flame-retardant Marine power cable,Type SA
CEH90/SA ERP insulation CSP inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CEH82/SA EPR insulation CSP inner sheath tinned copper wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
CEH92/SA EPR insulation CSP inner sheath galvanized steel wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
Type Description
CEV/DA EPR insulation PVC sheath Marine power cable,Type DA
CEV80/DA EPR insulation PVC inner sheath tinned copper wire braided Marine power cable,Type DA
CEV90/DA EPR insulation PVC inner sheath galvanized steel wire braided Marine power cable,Type DA
CEV82/DA EPR insulation PVC inner sheath tinned copper wire braided PVC outer sheath Marine power cable,Type DA
CEV92/DA EPR insulation PVC inner sheath galvanized steel wire braided PVC outer sheath Marine power cable,Type DA
CEV/SA EPR insulation PVC sheath flame-retardant Marine power cable,Type SA
CEV80/SA EPR insulation PVC inner sheath tinner copper wire braided flame-retardant Marine power cable,Type SA
CEV90/SA EPR insulation PVC inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CEV82/SA EPR insulation PVC inner sheath tinner copper wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
CEV92/SA EPR insulation PVC inner sheath galvanized steel wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
EEF8F/SA EPR insulation PCP inner sherth tinner copper wire braided PCP outer sheath Marine power cable ,Type SA
Type Description
CVV/DA PVC insulation PVC sheath Marine power cable ,Type DA
CVV80/DA PVC insulation PVC inner sheath tinned copper wire braided Marine power cable,Type DA
CVV90/DA PVC insulation PVC inner sheath galvanized steel wire braided Marine power cable,Type DA
CVV82/DA PVC insulation PVC inner sheath tinned copper wire braided PVC outer sheath Marine power cable,Type DA
CVV92/DA PVC insulation PVC inner sheath galvanized steel wire braided PVC outer sheath Marine power cable,Type DA
CVV/SA PVC insulation PVC sheath flame-retardant Marine power cable,Type SA
CVV80/SA PVC insulation PVC inner sheath tinned copper wire braided flame-retardant Marine power cable,Type SA
CVV90/SA PVC insulation PVC inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CVV82/SA PVC insulation PVC inner sheath tinned copper wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
CVV92/SA PVC insulation PVC inner sheath galvanized steel wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
Type Description
CEFR/DA EPR insulation PCP sheath Marine flexible power cable,Type DA
CEFR/SA EPR insulation PCP sheath flame-retardant Marine flexible power cable,Type SA
CEHR/DA EPR insulation PCP sheath Marine flexible power cable,Type DA
CEHR/SA EPR insulation PCP sheath flame-retardant Marine flexible power cable,Type SA
Type Description
CE8F90/DA EPR insulation tinned copper wire braided PCP inner sheath galvanized steel wire braided Marine power cable,Type DA
CE8F90/SA EPR insulation tinned copper wire braided PCP inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CE8F82/DA EPR insulation tinned copper wire braided PCP inner sheath tinned copper wire braided PVC outer sheath hipboard power cable,Type DA
CE8F82/SA EPR insulation tinned copper wire braided PCP inner sheath tinned copper wire braided PVC outer sheath flame-retardant hipboard power cable,Type SA
CE8F92/DA EPR insulation tinned copper wire braided PCP inner sheath galvanized steel wire braided outer sheath hipboard power cable,Type DA
CE8F92/SA EPR insulation tinned copper wire braided PCP inner sheath galvanized steel wire braided outer sheath flame-retardant hipboard power cable,Type SA
CE8H/DA EPR insulation tinned copper wire braided PCP sheath flame-retardant Marine power cable,Type DA
CE8H/SA EPR insulation tinned copper wire braided PCP sheath flame-retardant Marine power cable,Type SA
CE8H80/DA EPR insulation tinned copper wire braided CSP inner sheath copper wire braided Marine power cable,Type DA
CE8H80/SA EPR insulation tinned copper wire braided CSP inner sheath tinned copper wire braided flame-retardant Marine power cable,Type SA
Type Description
CE8H90/DA EPR insulation tinned copper wire braided CSP inner sheath galvanized steel wire braided Marine power cable,Type DA
CE8H90/SA EPR insulation tinned copper wire braided CSP inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CE8H82/DA EPR insulation tinned copper wire braided CSP inner sheath tinned copper wire braided PVC outer sheath hipboard power cable,Type DA
CE8H82/SA EPR insulation tinned copper wire braided CSP inner sheath tinned copper wire braided PVC outer sheath flame-retardant hipboard power cable,Type SA
CE8H92/DA EPR insulation tinned copper wire braided CSP inner sheath galvanized steel wire braided PVC outer sheath hipboard power cable,Type DA
CE8H92/SA EPR insulation tinned copper wire braided CSP inner sheath galvanized steel wire braided PVC outer sheath flame-retardant hipboard power cable,Type SA
CE82/DA EPR insulation tinned copper wire braided PVC outer sheath hipboard power cable,Type DA
CE82/SA EPR insulation tinned copper wire braided PVC outer sheath flame-retardant hipboard power cable,Type SA
CE8290/DA EPR insulation tinned copper wire braided PVC inner sheath galvanized steel wire braided Marine power cable,Type DA
CE8292/SA EPR insulation tinned copper wire braided PVC inner sheath galvanized steel wire braided PVC outer sheath flame-retardant hipboard power cable,Type SA
Type Description
CEFP/DA EPR insulation separated screen PCP sheath shipborad power cable,Type DA
CEFP80/DA EPR insulation separated screen PCP inner sheath tinned copper wire braided Marine power cable,Type DA
CEFP90/DA EPR insulation separated screen PCP inner sheath galvanized steel wire braided Marine power cable,Type DA
CEFP82/DA EPR insulation separated screen PCP inner sheath tinned copper wire braided PVC outer sheathed Marine power cable,Type DA
CEFP92/DA EPR insulation separated screen PCP inner sheath galvanized steel wire braided PVC outer sheath Marine power cable,Type DA
CEFP/SA EPR insulation separated screen PCP inner sheath flame-retardant Marine power cable,Type SA
CEFP80/SA EPR insulation separated screen PCP inner sheath tinned copper wire braided flame-retardant Marine power cable,Type SA
CEFP90/SA EPR insulation separated screen PCP inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CEFP82/SA EPR insulation separated screen PCP inner sheath tinned copper wire braided PVC outer sheathed flame-retardant Marine power cable,Type SA
CEFP92/SA EPR insulation separated screen PCP inner sheath galvanized steel wire braided PVC outer sheath flame-retardant Marine power cable,Type SA
Type Description
CEHP/DA EPR insulation separated screen CSP sheath shipborad power cable,Type DA
CEHP80/DA EPR insulation separated screen CSP inner sheath tinned copper wire braided Marine power cable,Type DA
CEHP90/DA EPR insulation separated screen CSP inner sheath galvanized steel wire braided Marine power cable,Type DA
CEHP82/DA EPR insulation separated screen CSP inner sheath tinned copper wire braided PVC outer sheath Marine power cable,Type DA
CEHP92/DA EPR insulation separated screen CSP inner sheath galvanized steel wire braided PVC outer sheath Marine power cable,Type DA
CEHP/SA EPR insulation separated screen CSP sheath flame-retardant Marine power cable,Type SA
CEHP80/SA EPR insulation separated screen CSP inner sheath tinned copper wire braided flame-retardant Marine power cable,Type SA
CEHP90/SA EPR insulation separated screen CSP inner sheath galvanized steel wire braided flame-retardant Marine power cable,Type SA
CEHP82/SA EPR insulation separated screen CSP inner sheath tinned copper wire braided PVC outer sheathed flame-retardant Marine power cable,Type SA
CEHP92/SA EPR insulation separated screen CSP inner sheath galvanized steel wire braided PVC outer sheath flame-retardant Marine power cable,Type SA

Marine power cable Specification

Model Core Nominal Cross-section/mm2
CEF、CEF80、CEF90、CEF92 1 1~300
CEH、CEH80、CEH90、CEH92 2 1~120
CEV、CEV80、CEV90、CEV92 3 1~185
CEF82、CEH82、CEV82、CEFR、CEHR 4~37 1~2.5

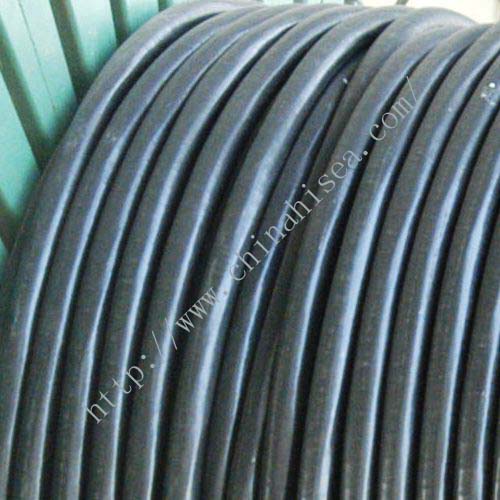

Marine power cable Show

marine power cable.jpg
